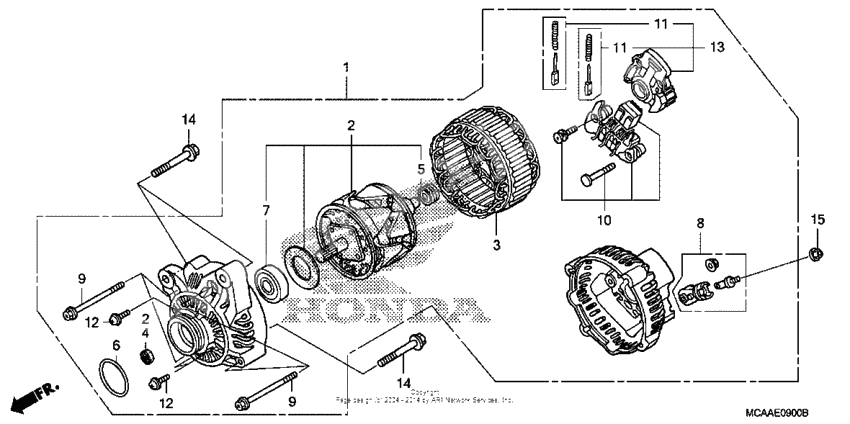

Alternator
Alternator
Alternator assy. (Ref #1)
1
Part #31100-MCA-S41
Защелка сиденья (Ref #2)
2
Part #31101-MCA-A61
Защелка сиденья (Ref #2)
2
Part #31101-MCA-A61
Защелка сиденья (Ref #2)
2
Part #31101-MCA-A61
Защелка сиденья (Ref #2)
2
Part #31101-MCA-A61
STATOR (Ref #3)
3
Part #31102-MCA-A61
Seal set (Ref #4)
4
Part #31111-MCA-003
ПОДШИПНИК КАЧЕНИЯ (Ref #5)
5
Part #31111-P08-J02
Прокладка (Ref #6)
6
Part #31112-MCA-003
Bearing, fr. (Ref #7)
7
Part #31114-MCA-003
Terminal set (Ref #8)
8
Part #31123-MCA-003
BOLT (Ref #9)
9
Part #31125-P08-J02
BOLT (Ref #9)
9
Part #31125-P08-J02
BOLT (Ref #9)
9
Part #31125-P08-J02
BOLT (Ref #9)
9
Part #31125-P08-J02
Rectifier assy. (Ref #10)
10
Part #31127-MCA-A61
Щётка (Ref #11)
11
Part #31140-P64-902
Щётка (Ref #11)
11
Part #31140-P64-902
Щётка (Ref #11)
11
Part #31140-P64-902
Щётка (Ref #11)
11
Part #31140-P64-902
Болт (Ref #12)
12
Part #31146-PE0-004
Болт (Ref #12)
12
Part #31146-PE0-004
Болт (Ref #12)
12
Part #31146-PE0-004
Болт (Ref #12)
12
Part #31146-PE0-004
Комплект регулятора (Ref #13)
13
Part #31150-MCA-A61
BOLT (Ref #14)
14
Part #95701-080-380-8
BOLT (Ref #14)
14
Part #95701-080-380-8
BOLT (Ref #14)
14
Part #95701-080-380-8
BOLT (Ref #14)
14
Part #95701-080-380-8
Гайка (Ref #15)
15
Part #94050-06080
