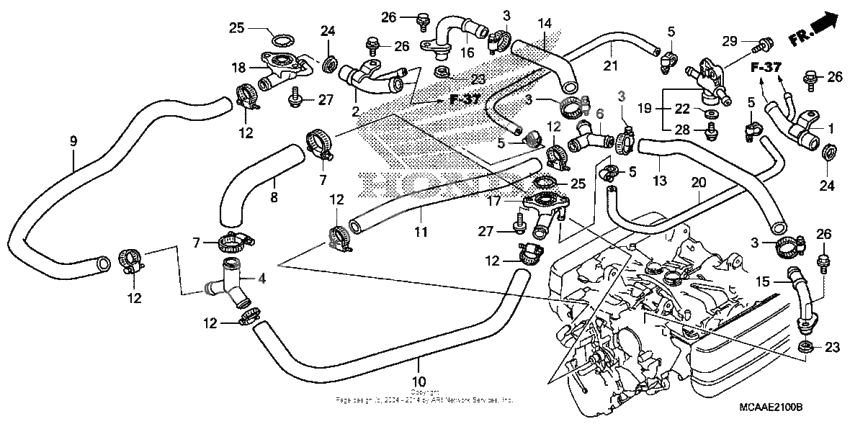

Water pipe
Water pipe
Pipe, r. water (Ref #1)
1
Part #19411-MCA-780
Pipe, l. water (Ref #2)
2
Part #19421-MCA-780
Joint, three-way (Ref #4)
4
Part #19506-MCA-000
Joint, three-way (Ref #6)
6
Part #19507-MCA-000
Clamp, radiator hose (Ref #7)
7
Part #19509-MM5-003
Clamp, radiator hose (Ref #7)
7
Part #19509-MM5-003
Clamp, radiator hose (Ref #7)
7
Part #19509-MM5-003
Clamp, radiator hose (Ref #7)
7
Part #19509-MM5-003
Hose a, water (Ref #8)
8
Part #19511-MCA-000
Hose b, water (Ref #9)
9
Part #19512-MCA-S40
Hose c, water (Ref #10)
10
Part #19513-MCA-S40
Hose a, bypass (Ref #11)
11
Part #19516-MCA-000
Hose b, bypass (Ref #13)
13
Part #19517-MCA-000
Hose c, bypass (Ref #14)
14
Part #19518-MCA-000
Pipe, r. bypass (Ref #15)
15
Part #19530-MCA-000
Pipe, l. bypass (Ref #16)
16
Part #19540-MCA-000
Joint, r. water hose (Ref #17)
17
Part #19710-MCA-010
Joint, l. water hose (Ref #18)
18
Part #19720-MCA-000
Joint, drain (Ref #19)
19
Part #19730-MCA-000
Hose a, drain (Ref #20)
20
Part #19732-MCA-010
Hose b, drain (Ref #21)
21
Part #19733-MCA-000
Шайба (Ref #22)
22
Part #90463-ML7-000
Seal, water pipe (Ref #23)
23
Part #91315-MCA-A00
Seal, water pipe (Ref #23)
23
Part #91315-MCA-A00
Seal, water pipe (Ref #23)
23
Part #91315-MCA-A00
Seal, water pipe (Ref #23)
23
Part #91315-MCA-A00
ДЕТАЛЬ (Ref #24)
24
Part #91316-MCA-A00
ДЕТАЛЬ (Ref #24)
24
Part #91316-MCA-A00
ДЕТАЛЬ (Ref #24)
24
Part #91316-MCA-A00
ДЕТАЛЬ (Ref #24)
24
Part #91316-MCA-A00
Прокладка (Ref #25)
25
Part #91317-MCA-A00
Прокладка (Ref #25)
25
Part #91317-MCA-A00
Прокладка (Ref #25)
25
Part #91317-MCA-A00
Прокладка (Ref #25)
25
Part #91317-MCA-A00
BOLT (Ref #27)
27
Part #95701-060-200-8
BOLT (Ref #27)
27
Part #95701-060-200-8
BOLT (Ref #27)
27
Part #95701-060-200-8
BOLT (Ref #27)
27
Part #95701-060-200-8
BOLT (Ref #28)
28
Part #96001-060-120-0
Болт (Ref #29)
29
Part #96300-0601600
