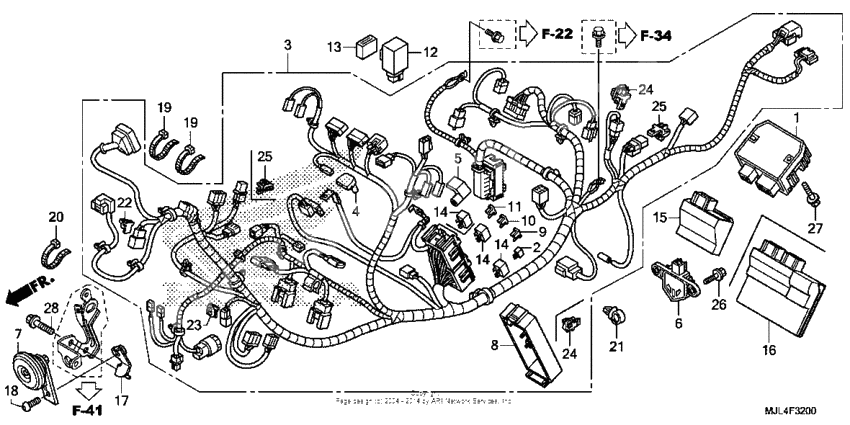

Wire harness
Wire harness
Rectifier, regulator (Ref #1)
1
Part #31600-MJJ-D71
Wire harness (Ref #3)
3
Part #32100-MJL-A51
COVER (Ref #4)
4
Part #32406-MGS-D31
COVER (Ref #5)
5
Part #32411-MGS-D31
Датчик (Ref #6)
6
Part #35160-MGS-D31
Horn (Ref #7)
7
Part #38110-MEE-013
Cover, power box (Ref #8)
8
Part #38201-MGS-D31
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #9)
9
Part #38221-SNA-A31
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #10)
10
Part #38221-SNA-A51
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #11)
11
Part #38221-SNA-A81
Relay, turn signal (Ref #12)
12
Part #38301-MEW-921
Suspension, winker relay (mitsuba) (Ref #13)
13
Part #38306-KK4-000
Pgm-fi unit (Ref #16)
16
Part #38770-MJL-A52
Опора/стойка horn (Ref #17)
17
Part #50311-MGS-D31
Bolt, socket (8x16) (Ref #18)
18
Part #90128-MGS-D30
BAND (Ref #19)
19
Part #90650-KV6-003
BAND (Ref #19)
19
Part #90650-KV6-003
BAND (Ref #19)
19
Part #90650-KV6-003
BAND (Ref #19)
19
Part #90650-KV6-003
Band, wire (black) (Ref #20)
20
Part #90652-KT1-771
CLIP (Ref #21)
21
Part #90683-SA0-003
Clip, connector (Ref #22)
22
Part #91533-MGS-D30
CLIP (Ref #23)
23
Part #91534-SWA-003
CLIP (Ref #24)
24
Part #91535-TA0-003
CLIP (Ref #24)
24
Part #91535-TA0-003
CLIP (Ref #24)
24
Part #91535-TA0-003
CLIP (Ref #24)
24
Part #91535-TA0-003
CLIP (Ref #25)
25
Part #91565-SEL-003
CLIP (Ref #25)
25
Part #91565-SEL-003
CLIP (Ref #25)
25
Part #91565-SEL-003
CLIP (Ref #25)
25
Part #91565-SEL-003
BOLT (Ref #26)
26
Part #95701-060-160-0
Bolt, flange, 6x22 (Ref #27)
27
Part #95701-0602200
Bolt,flange 8x25 (Ref #28)
28
Part #95701-080-250-8
