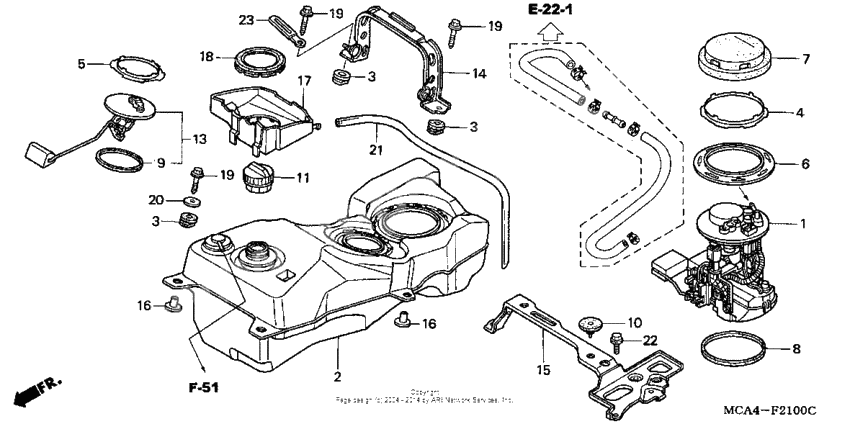

Fuel tank
Fuel tank
Pump assy., fuel (Ref #1)
1
Part #16700-MCA-013
Tank, fuel (Ref #2)
2
Part #17510-MCA-010
Locking ring (Ref #4)
4
Part #17515-MCA-003
Locking ring (Ref #5)
5
Part #17516-MCA-003
Ring, spacer (Ref #6)
6
Part #17517-MCA-000
Cover, fuel pump (Ref #7)
7
Part #17519-MCA-000
Gasket, base (Ref #8)
8
Part #17574-MCA-003
Gasket, fuel unit (Ref #9)
9
Part #17575-MCA-003
Cushion, rr (Ref #10)
10
Part #17615-MCA-000
Cap assy., fuel tank (Ref #11)
11
Part #17620-MCA-A01
Fuel unit set (Ref #13)
13
Part #37080-MCA-000
STAY (Ref #14)
14
Part #50250-MCA-010
STAY (Ref #15)
15
Part #50330-MCA-A01
Collar, rr. fender (Ref #16)
16
Part #80108-KF9-900
Collar, rr. fender (Ref #16)
16
Part #80108-KF9-900
Collar, rr. fender (Ref #16)
16
Part #80108-KF9-900
Collar, rr. fender (Ref #16)
16
Part #80108-KF9-900
Tray, fuel filler (Ref #17)
17
Part #83502-MCA-A00
Gasket, fuel tray (Ref #18)
18
Part #83503-MCA-A00
Washer, tank setting (Ref #20)
20
Part #90136-428-870
Bulk hose (8x1000) (Ref #21)
21
Part #95005-800-0120M
Bolt, flange, 6x16 (Ref #22)
22
Part #96001-0601607
Clip, 2x60 (Ref #23)
23
Part #91410-679-000
