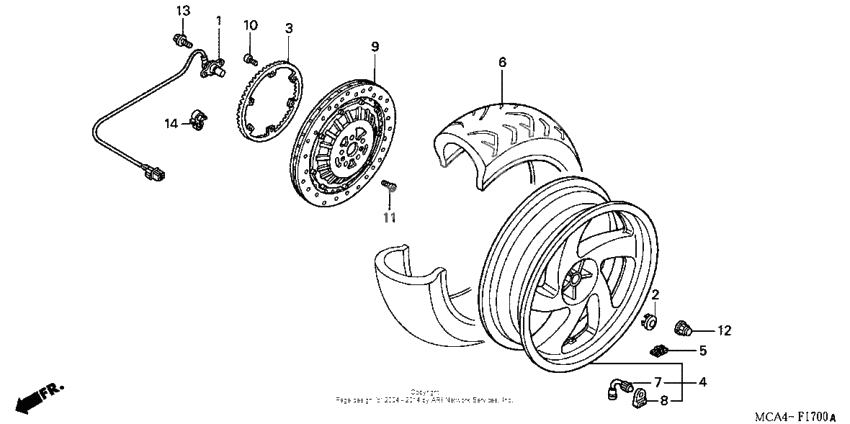

Rear wheel
Rear wheel
Sensor, rr. (Ref #1)
1
Part #38510-MCA-A30
Cap, rr. axle (Ref #2)
2
Part #42303-MT4-000
Ring, pulser (Ref #3)
3
Part #42515-MCA-S70
Wheel sub-assy., rr. (Ref #4)
4
Part #42650-MCA-A00
Грузик (Ref #5)
5
Part #42706-MB0-000
Грузик (Ref #5)
5
Part #42705-MCF-D60
Грузик (Ref #5)
5
Part #42704-MCF-D60
Tire (180/60r16) (Ref #6)
6
Part #42711-MCA-A62
Клапан, обод колеса (Ref #7)
7
Part #42753-KJ9-003
Hold, rim valve (Ref #8)
8
Part #42754-MN5-000
Disk, rr. brake (Ref #9)
9
Part #43250-MCA-013
Болт (Ref #10)
10
Part #90131-KPB-751
ДЕТАЛЬ (Ref #11)
11
Part #90132-MCA-000
ГАЙКА КОЛЁСНАЯ (Ref #12)
12
Part #90307-MCA-000
Clip, engine kill switch cord (Ref #14)
14
Part #90660-ZA0-600
