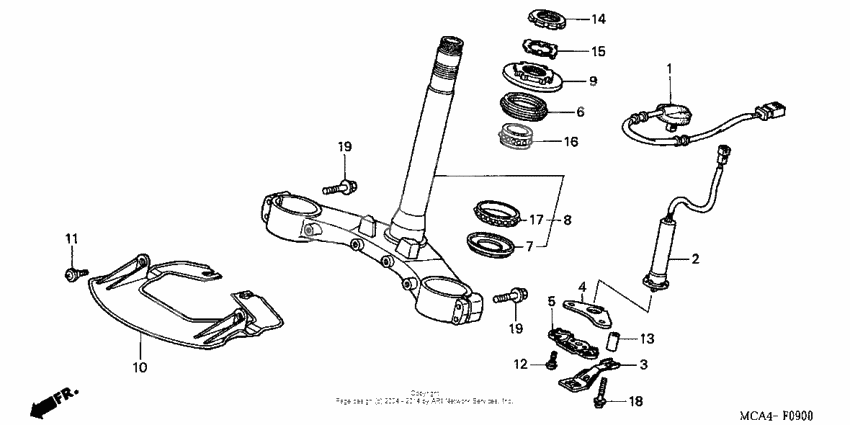

Steering stem
Steering stem
Sub-wire, cancel (Ref #1)
1
Part #32108-MCA-000
Cancel unit (Ref #2)
2
Part #35220-MCA-003
Plate, angle sensor (Ref #4)
4
Part #50261-MCA-000
Plate, angle sensor (Ref #5)
5
Part #50262-MCA-000
DUST SEAL (Ref #6)
6
Part #53214-KA4-701
УПЛОТНЕНИЕ ПЫЛЕНЕПРОНИЦАЕМОЕ (Ref #7)
7
Part #53214-MR7-003
Stem sub-assy., strg (Ref #8)
8
Part #53219-MCA-A00
Thread (Ref #9)
9
Part #53220-MW0-000
Screw, hinge patch (Ref #11)
11
Part #90101-GE0-000
Screw, special (6mm) (Ref #12)
12
Part #90106-MBA-610
Colr, sensor support (Ref #13)
13
Part #90113-MCA-000
Thread (Ref #14)
14
Part #90302-425-830
Шайба, стопорная (Ref #15)
15
Part #90506-425-830
Bearing, head pipe (Ref #16)
16
Part #91015-KT8-005
ПОДШИПНИК КАЧЕНИЯ (Ref #17)
17
Part #91016-MR7-003
Screw-washer (5x30) (Ref #18)
18
Part #93894-0503008
BOLT (Ref #19)
19
Part #95701-080-350-0
BOLT (Ref #19)
19
Part #95701-080-350-0
BOLT (Ref #19)
19
Part #95701-080-350-0
BOLT (Ref #19)
19
Part #95701-080-350-0
