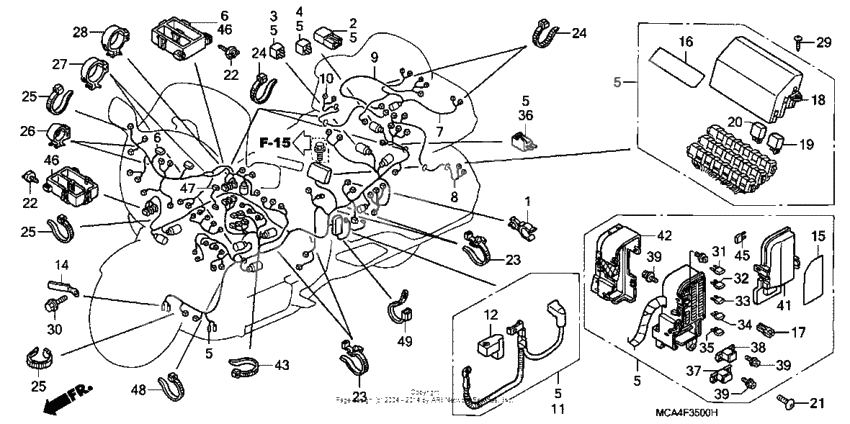

Wire harness
Wire harness
Clip, breather tube (Ref #1)
1
Part #11338-KJ9-751
Diode assy. (Ref #2)
2
Part #31700-750-801
Rectifier comp., silicon (Ref #3)
3
Part #31700-196-000
Rectifier comp., silicon (Ref #4)
4
Part #31700-MM8-610
Sub-harness, fairing (Ref #6)
6
Part #32105-MCA-A10
Sub-harness, fairing (Ref #6)
6
Part #32105-MCA-A10
Sub-harness, fairing (Ref #6)
6
Part #32105-MCA-A10
Sub-harness, fairing (Ref #6)
6
Part #32105-MCA-A10
Sub-harness (Ref #7)
7
Part #32120-MCA-670
Sub-harness, l. (Ref #8)
8
Part #32130-MCA-670
Sub-harness (Ref #9)
9
Part #32140-MCA-670
Sub-harness, r. (Ref #10)
10
Part #32180-MCA-670
Cable (Ref #11)
11
Part #32401-MCA-000
COVER (Ref #12)
12
Part #32412-MCA-000
Clip, sub cord (Ref #14)
14
Part #32901-MA1-000
Label, fuse box (Ref #15)
15
Part #38215-MCA-971
Label, relay box (Ref #16)
16
Part #38216-MCA-671
Съёмник мини предохранитель (Ref #17)
17
Part #38235-S04-003
Cover (upper) (Ref #18)
18
Part #38282-MCA-003
Relay (micro iso 4p) (Ref #19)
19
Part #39794-MCA-000
Relay (micro iso 5p) (Ref #20)
20
Part #39795-MCA-000
Screw (5x12) (Ref #21)
21
Part #90114-KFK-000
CLIP (Ref #22)
22
Part #90138-MCA-003
CLIP (Ref #22)
22
Part #90138-MCA-003
CLIP (Ref #22)
22
Part #90138-MCA-003
CLIP (Ref #22)
22
Part #90138-MCA-003
BAND (Ref #23)
23
Part #90649-SC2-003
BAND (Ref #23)
23
Part #90649-SC2-003
BAND (Ref #23)
23
Part #90649-SC2-003
BAND (Ref #23)
23
Part #90649-SC2-003
Band, wire, 165mm (black) (Ref #24)
24
Part #90651-KV6-003
Band, wire, 165mm (black) (Ref #24)
24
Part #90651-KV6-003
Band, wire, 165mm (black) (Ref #24)
24
Part #90651-KV6-003
Band, wire, 165mm (black) (Ref #24)
24
Part #90651-KV6-003
Clip, cable, 15mm (Ref #26)
26
Part #90690-GHB-651
Clip, cable, 25mm (Ref #27)
27
Part #90690-GHB-671
Clip, cable (30mm) (Ref #28)
28
Part #90690-GHB-681
Болт (Ref #29)
29
Part #93903-25380
BOLT (Ref #30)
30
Part #96001-060-120-0
Fuse, mini (5a) (Ref #31)
31
Part #9820040500
Fuse (Ref #32)
32
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #33)
33
Part #98200-41500
Fuse (Ref #34)
34
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #35)
35
Part #98200-43000
Коннектор (Ref #36)
36
Part #32146-SH3-003
Fuse (Ref #37)
37
Part #38215-SX8-003
Fuse (Ref #38)
38
Part #38218-SM4-003
Cover (upper) (Ref #41)
41
Part #38252-MCA-003
Cover (lower) (Ref #42)
42
Part #38256-MCA-003
BAND (Ref #43)
43
Part #90679-SG9-E01
ПРЕДОХРАНИТЕЛЬ 7,5А (Ref #45)
45
Part #98200-40750
Держатель соединения (Ref #46)
46
Part #91571-MCA-P00
Держатель соединения (Ref #46)
46
Part #91571-MCA-P00
Держатель соединения (Ref #46)
46
Part #91571-MCA-P00
Держатель соединения (Ref #46)
46
Part #91571-MCA-P00
BAND (Ref #48)
48
Part #90650-KV6-003
BAND (Ref #49)
49
Part #90620-SB2-003
