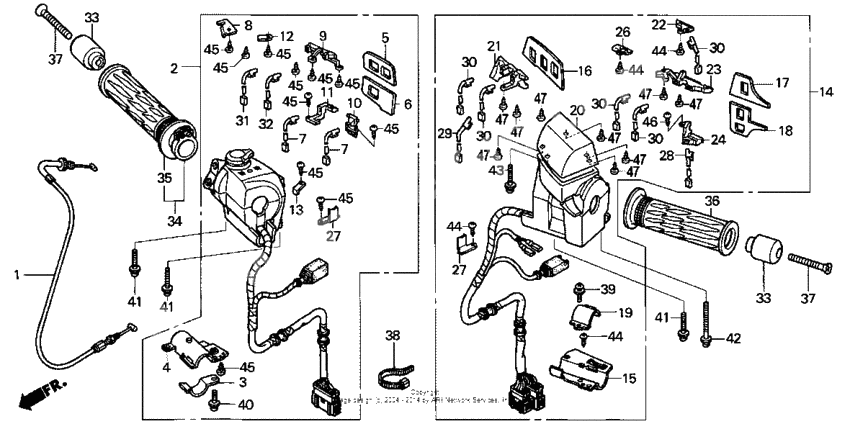

Handle switch (2)
Handle switch (2)
Cable a, throttle (Ref #1)
1
Part #17910-MCA-000
Switch, starter stop (Ref #2)
2
Part #35130-MCA-A21
Plate a (Ref #3)
3
Part #35132-MCA-003
Plate b (Ref #4)
4
Part #35133-MCA-003
Plate, ornament (Ref #5)
5
Part #35134-MCA-A20
Plate, ornament (Ref #6)
6
Part #35135-MCA-A20
Bulb (Ref #7)
7
Part #35139-MCA-A20
Bulb (Ref #7)
7
Part #35139-MCA-A20
Bulb (Ref #7)
7
Part #35139-MCA-A20
Bulb (Ref #7)
7
Part #35139-MCA-A20
Clamp, wire (Ref #8)
8
Part #35141-MCA-A20
Стекло заднего фонаря (Ref #9)
9
Part #35142-MCA-A20
Стекло заднего фонаря (Ref #10)
10
Part #35143-MCA-A20
Стекло заднего фонаря (Ref #11)
11
Part #35144-MCA-A20
Clamp, wire (Ref #12)
12
Part #35145-MCA-A20
Clamp, wire (Ref #13)
13
Part #35146-MCA-A20
Switch assy (Ref #14)
14
Part #35200-MCA-A21
Plate a set (Ref #15)
15
Part #35202-MCA-003
Plate, ornament (Ref #16)
16
Part #35203-MCA-A20
Plate, ornament (Ref #17)
17
Part #35205-MCA-A20
Plate, ornament (Ref #18)
18
Part #35206-MCA-A20
Plate b set (Ref #19)
19
Part #35207-MCA-003
Case, audio (upper) (Ref #20)
20
Part #35211-MCA-A20
Lens, audio (Ref #21)
21
Part #35212-MCA-A20
Lens, turn signal (Ref #22)
22
Part #35213-MCA-A20
Lens, turn signal (Ref #23)
23
Part #35214-MCA-A20
Линза (Ref #24)
24
Part #35215-MCA-A20
Clamp, wire (upper) (Ref #26)
26
Part #35217-MCA-A20
Clamp, wire (Ref #27)
27
Part #35218-MCA-A20
Clamp, wire (Ref #27)
27
Part #35218-MCA-A20
Clamp, wire (Ref #27)
27
Part #35218-MCA-A20
Clamp, wire (Ref #27)
27
Part #35218-MCA-A20
Bulb (t3) (Ref #28)
28
Part #35219-MCA-A20
Bulb (t3) (Ref #29)
29
Part #35220-MCA-A20
Bulb (t3) (Ref #31)
31
Part #39206-MCA-013
Weight, handlebar (Ref #33)
33
Part #53105-MK4-620
Weight, handlebar (Ref #33)
33
Part #53105-MK4-620
Weight, handlebar (Ref #33)
33
Part #53105-MK4-620
Weight, handlebar (Ref #33)
33
Part #53105-MK4-620
Grip, r. (Ref #34)
34
Part #53145-MJG-305
Grip, r. handle (Ref #35)
35
Part #53165-MCA-000
Grip, l. handle (Ref #36)
36
Part #53166-MJG-305
Screw, oval (6x65) (Ref #37)
37
Part #90191-KBG-000
Screw, oval (6x65) (Ref #37)
37
Part #90191-KBG-000
Screw, oval (6x65) (Ref #37)
37
Part #90191-KBG-000
Screw, oval (6x65) (Ref #37)
37
Part #90191-KBG-000
BAND (Ref #38)
38
Part #90650-KV6-003
Screw-washer (Ref #39)
39
Part #93892-050-100-8
КРЕПЛЕНИЕ (Ref #40)
40
Part #93892-050-200-8
Screw-washer (5x45) (Ref #42)
42
Part #93892-0504507
Screw-washer (5x32) (Ref #43)
43
Part #93893-0503208
