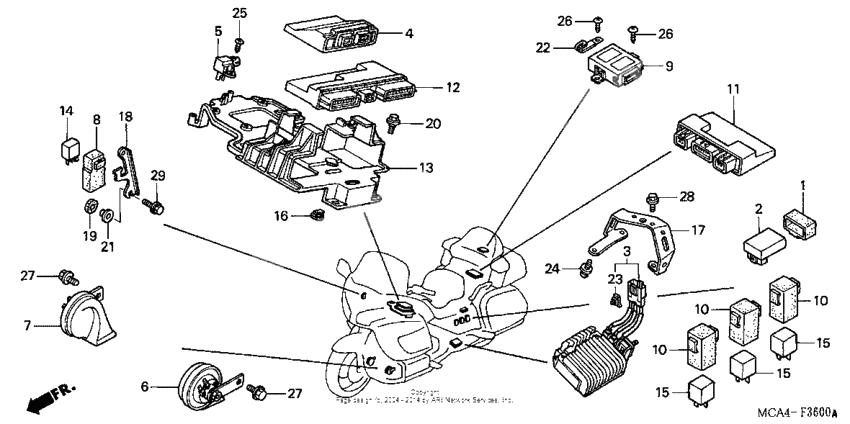

Control unit
Control unit
CUSHION (Ref #1)
1
Part #30401-MCA-000
Regulator, reverse (Ref #2)
2
Part #31710-MCA-003
Resistor, reverse (Ref #3)
3
Part #36280-MCA-003
Контроллер (Ref #4)
4
Part #36700-MCA-003
Sensor assy., map (Ref #5)
5
Part #37830-MAT-E01
Звуковой сигнал (Ref #6)
6
Part #38110-MCA-003
Звуковой сигнал (Ref #7)
7
Part #38120-MCA-003
Suspension (Ref #8)
8
Part #38306-MCA-000
Блок управления (Ref #9)
9
Part #38380-MCA-A41
Abs control unit (Ref #11)
11
Part #38600-MCA-971
Pgm-fi unit (Ref #12)
12
Part #38770-MCA-A21
Stay, pgm-fi unit (Ref #13)
13
Part #38771-MCA-000
Relay (micro iso 5p) (Ref #14)
14
Part #39795-MCA-000
Plug, useless hole (Ref #16)
16
Part #50318-041-600
STAY (Ref #17)
17
Part #50331-MCA-000
Plate, stay (upper) (Ref #18)
18
Part #64513-MCA-000
Rubber, seat hinge (Ref #19)
19
Part #77218-GB2-720
Bolt, fr. fender fixing (Ref #20)
20
Part #90106-MM9-000
Шайба (Ref #21)
21
Part #90512-MBY-000
CLIP (Ref #22)
22
Part #91411-679-000
CLIP (Ref #23)
23
Part #91556-SP0-003
Screw-washer (Ref #24)
24
Part #93892-050-080-8
Болт (Ref #25)
25
Part #93903-24380
Болт (Ref #26)
26
Part #93903-25280
Болт (Ref #26)
26
Part #93903-25280
Болт (Ref #26)
26
Part #93903-25280
Болт (Ref #26)
26
Part #93903-25280
Bolt, flange, 8x10 (Ref #27)
27
Part #95701-0801008
Bolt, flange, 8x10 (Ref #27)
27
Part #95701-0801008
Bolt, flange, 8x10 (Ref #27)
27
Part #95701-0801008
Bolt, flange, 8x10 (Ref #27)
27
Part #95701-0801008
Bolt, flange, 6x16 (Ref #28)
28
Part #96001-0601607
BOLT (Ref #29)
29
Part #96001-060-160-0
