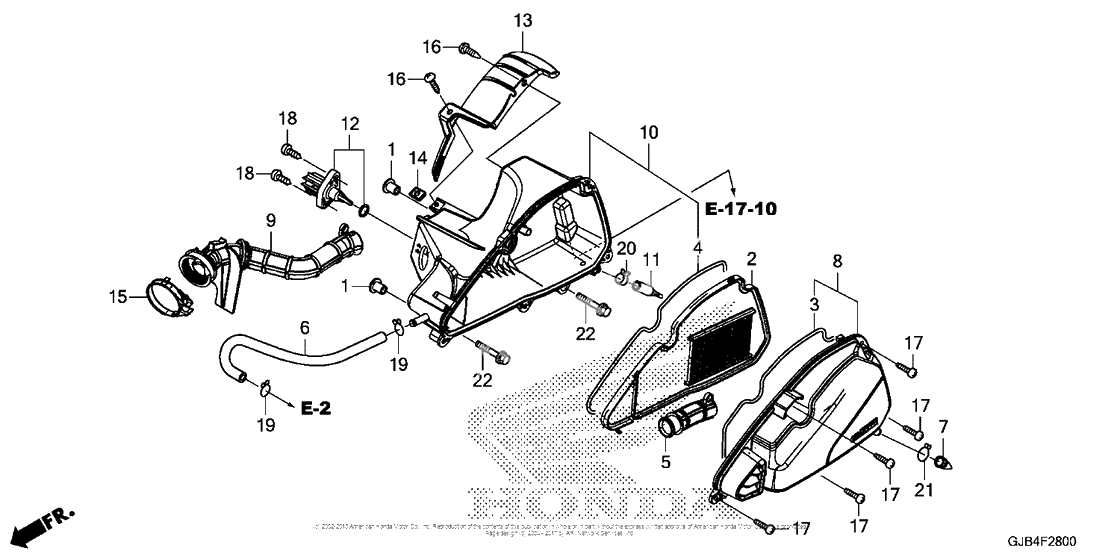

Воздушный фильтр
Воздушный фильтр
Collar, air cleaner setting (Ref #1)
1
Part #17208-GR1-010
Element comp., air cleaner (Ref #2)
2
Part #17210-GGZ-J00
New Genuine Part (Ref #3)
3
Part #17212-GGZ-J00
New Genuine Part (Ref #4)
4
Part #17213-GGZ-J00
New Genuine Part (Ref #5)
5
Part #17215-GGZ-J00
New Genuine Part (Ref #6)
6
Part #17218-GGZ-J00
TUBE (Ref #7)
7
Part #17234-KCW-871
New Genuine Part (Ref #8)
8
Part #17245-GGZ-J00
New Genuine Part (Ref #9)
9
Part #17253-GGZ-J00
New Genuine Part (Ref #10)
10
Part #17255-GGZ-J00
Трубка дренажная (Ref #11)
11
Part #17261-KVB-T00
Сенсор температуры воздуха (Ref #12)
12
Part #37880-KWW-C01
New Genuine Part (Ref #13)
13
Part #80106-GGZ-J00
Nut, spring (5mm) (Ref #14)
14
Part #90301-KE1-003
Nut, spring (5mm) (Ref #14)
14
Part #90301-GAZ-930
New Genuine Part (Ref #15)
15
Part #90652-GGZ-J00
Болт (Ref #16)
16
Part #93903-25380
Болт (Ref #17)
17
Part #93903-25480
New Genuine Part (Ref #18)
18
Part #93913-255J0
Clip, tube (b12.5) (Ref #19)
19
Part #9500202130
CLAMP (Ref #20)
20
Part #95002-412-000-8
Clip, tube (c12) (Ref #21)
21
Part #9500280000
BOLT (Ref #22)
22
Part #95701-060-300-0
