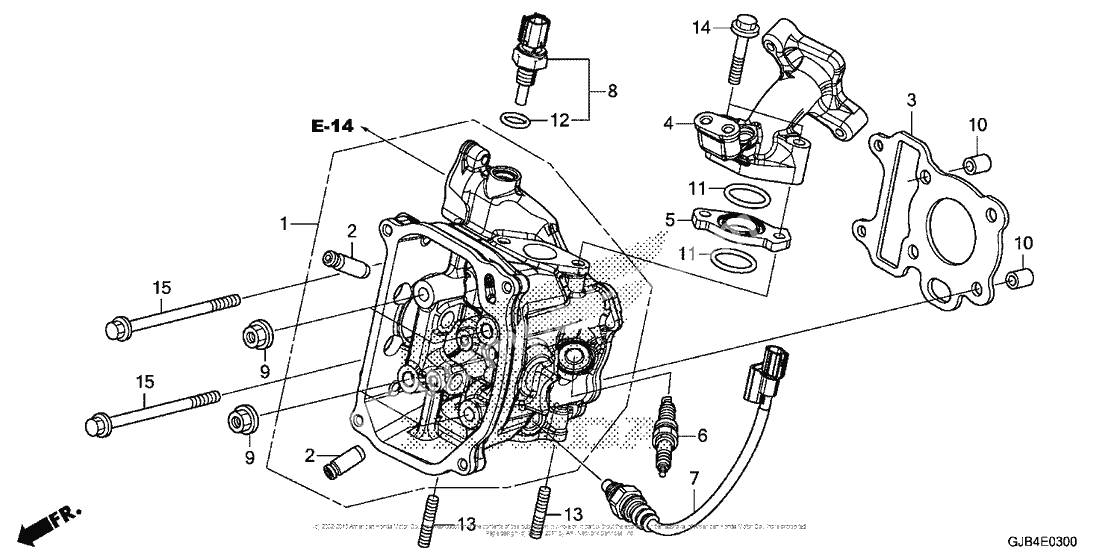

Головка цилиндра
Головка цилиндра
Cylinder head (Ref #1)
1
Part #12200-GGZ-J00
New Genuine Part (Ref #2)
2
Part #12204-GGZ-P00
New Genuine Part (Ref #3)
3
Part #12251-GGZ-J01
New Genuine Part (Ref #4)
4
Part #17111-GGZ-J00
New Genuine Part (Ref #5)
5
Part #17119-GGZ-J00
S/plg (cpr8ea-9) (Ref #6)
6
Part #31916-KRM-841
New Genuine Part (Ref #7)
7
Part #36532-GGZ-J01
Sensor, water temp (Ref #8)
8
Part #37870-KZR-601
Гайка (Ref #9)
9
Part #90201-GFC-900
Pin d0wel special 8x14 (Ref #10)
10
Part #90701-KFM-900
O-ring, 20.6x1.9 (Ref #11)
11
Part #91304-HP5-601
Прокладка (Ref #12)
12
Part #91307-PLC-004
BOLT (Ref #13)
13
Part #92900-06014-0B
Bolt, flange, 6x40 (Ref #14)
14
Part #95701-0604000
Bolt, flange, 6x75 (Ref #15)
15
Part #95701-0607500
