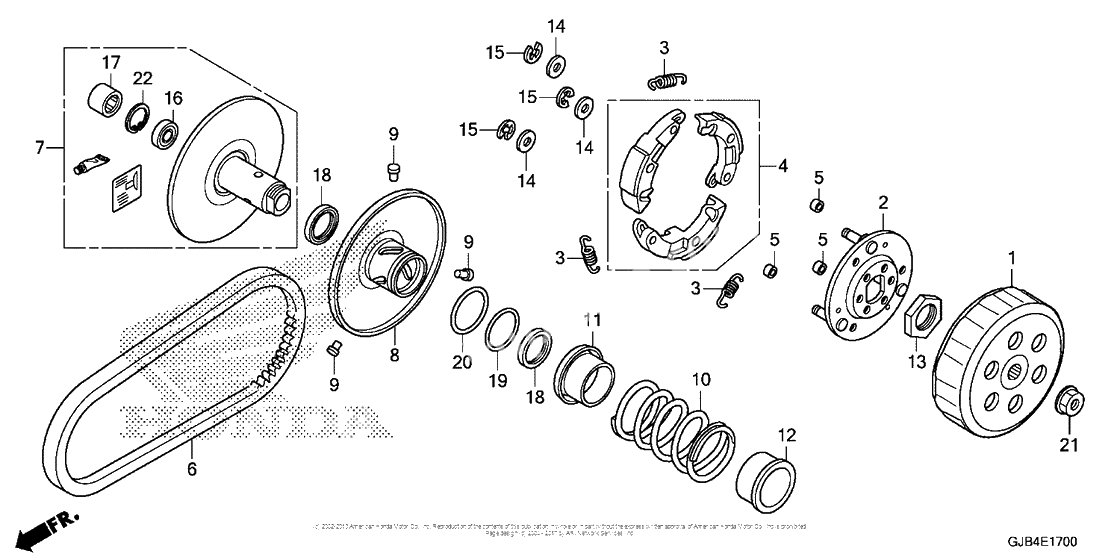

Driven face
Driven face
New Genuine Part (Ref #1)
1
Part #22100-GGZ-J00
New Genuine Part (Ref #2)
2
Part #22350-GGZ-J00
Пружина (Ref #3)
3
Part #22401-GG2-900
Weight set, clutch (Ref #4)
4
Part #22535-GAK-305
Rubber, clutch damper (Ref #5)
5
Part #22804-148-000
Belt, drive (Ref #6)
6
Part #23100-GGZ-J01
New Genuine Part (Ref #7)
7
Part #23205-GGZ-J00
New Genuine Part (Ref #8)
8
Part #23220-GGZ-J00
Pin,guide (Ref #9)
9
Part #23225-GR1-750
Spring, driven face (Ref #10)
10
Part #23233-GEE-000
New Genuine Part (Ref #11)
11
Part #23237-GGZ-J00
New Genuine Part (Ref #12)
12
Part #23238-GGZ-J00
New Genuine Part (Ref #13)
13
Part #90202-GGZ-J00
Washer, thrust (6mm) (Ref #14)
14
Part #90442-044-000
Circlip (Ref #15)
15
Part #90454-GB2-000
Brg ball radial 6901u (Ref #16)
16
Part #91006-GGL-J01
Brg needle 17x25x18 ws (Ref #17)
17
Part #91103-GGL-J01
Oil seal,34x39x3 (Ref #18)
18
Part #91211-GFC-771
O-ring 36x1.5 (Ref #19)
19
Part #91301-KA5-741
0-ring 39. 8x2. 2 (Ref #20)
20
Part #91302-GGL-J01
Гайка (Ref #21)
21
Part #94050-10000
Circlip (24mm) (Ref #22)
22
Part #9452024000
