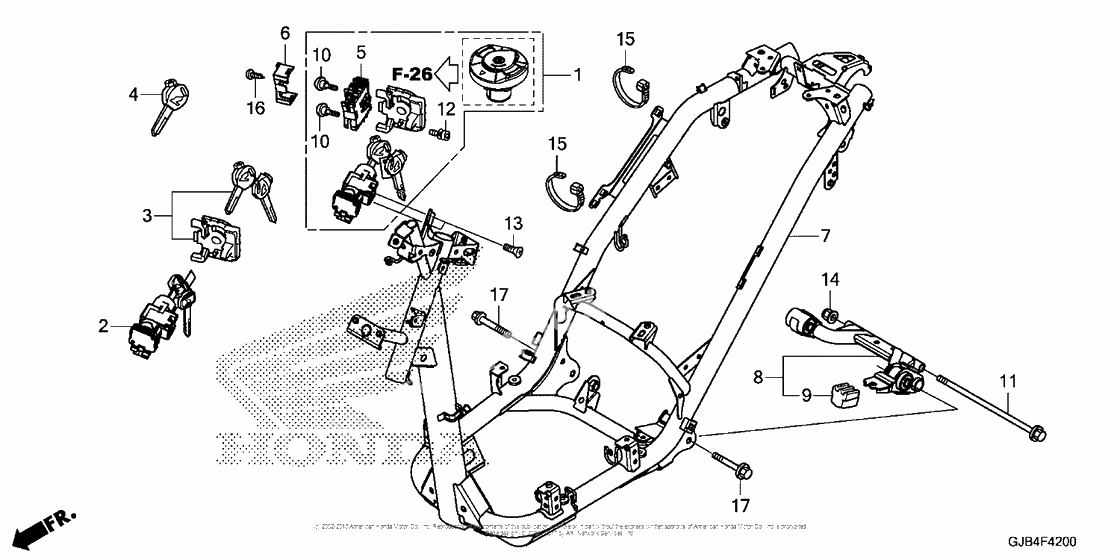

Рама
Рама
LOCK SET (Ref #1)
1
Part #35010-GJA-J00
SWITCH ASSY. (Ref #2)
2
Part #35101-K46-N01
Shutter, key (Ref #3)
3
Part #35110-K46-N01
Key, Blank (N0Keytop2Reporder) (N0Tagtop2Reporder) | (Optional) (Ref #4)
4
Part #35121-K46-N00
SWITCH, SEAT OPENER (Ref #5)
5
Part #35190-K46-N01
Cover, cable (Ref #6)
6
Part #35191-K27-V01
Frame (Ref #7)
7
Part #50100-GJB-J00
New Genuine Part (Ref #8)
8
Part #50350-GGZ-J00
New Genuine Part (Ref #9)
9
Part #50352-GGZ-J00
Болт (Ref #10)
10
Part #90101-MT4-000
Bolt, flg (10x238) (Ref #11)
11
Part #90106-GCC-C50
Bolt, socket (5x9) (Ref #12)
12
Part #90111-MR5-000
Screw (6x12) (Ref #13)
13
Part #90164-028-000
Nut, u, 10mm (Ref #14)
14
Part #90304-GE8-003
BAND (Ref #15)
15
Part #90620-SB2-003
Болт (Ref #16)
16
Part #93901-24320
Bolt, flange, 10x60 (Ref #17)
17
Part #95801-1006000
-
435121-K46-N00
Key, Blank (N0Keytop2Reporder) (N0Tagtop2Reporder) | (Optional)
1Доступно: Нет в наличии
