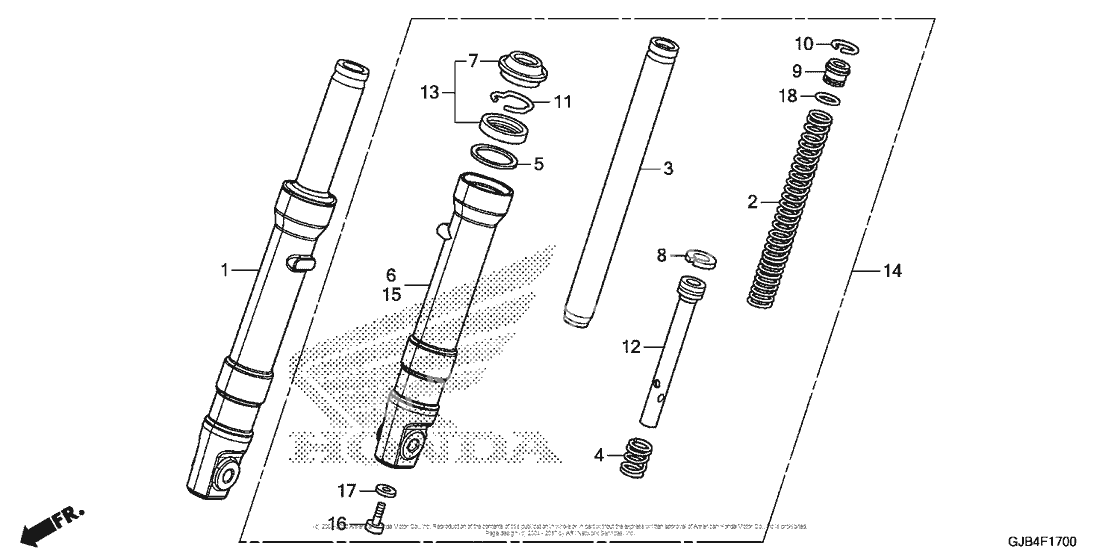

Вилка передней оси
Вилка передней оси
Fork assy,r fr(co (Ref #1)
1
Part #51400-GJB-305
New Genuine Part (Ref #2)
2
Part #51401-GGZ-J01
New Genuine Part (Ref #3)
3
Part #51410-GGZ-J01
SPRING,REBOUND (Ref #4)
4
Part #51412-GN5-901
Ring, back-up (Ref #5)
5
Part #51412-KWB-601
New Genuine Part (Ref #6)
6
Part #51420-GGZ-J01
DUST SEAL (Ref #7)
7
Part #51425-GN5-901
New Genuine Part (Ref #8)
8
Part #51437-GGZ-J01
Seat b,spring (Ref #9)
9
Part #51454-KEV-881
Кольцо стопорное (Ref #10)
10
Part #51456-KPH-901
Ring,seal stop (Ref #11)
11
Part #51466-065-901
New Genuine Part (Ref #12)
12
Part #51470-GGZ-J01
SEAL SET,FR FORK (Ref #13)
13
Part #51490-KGH-901
Fork assy,l fr(co (Ref #14)
14
Part #51500-GJB-305
Case, l. fr. (lower) (Ref #15)
15
Part #51520-GJA-J01
Bolt, socket (8mm) (Ref #16)
16
Part #90116-KV3-701
Шайба (Ref #17)
17
Part #90544-283-000
O-ring, 15.8x2.4 (showa) (Ref #18)
18
Part #91304-MJ0-003
O RING (Ref #18)
18
Part #91356-GM0-003
