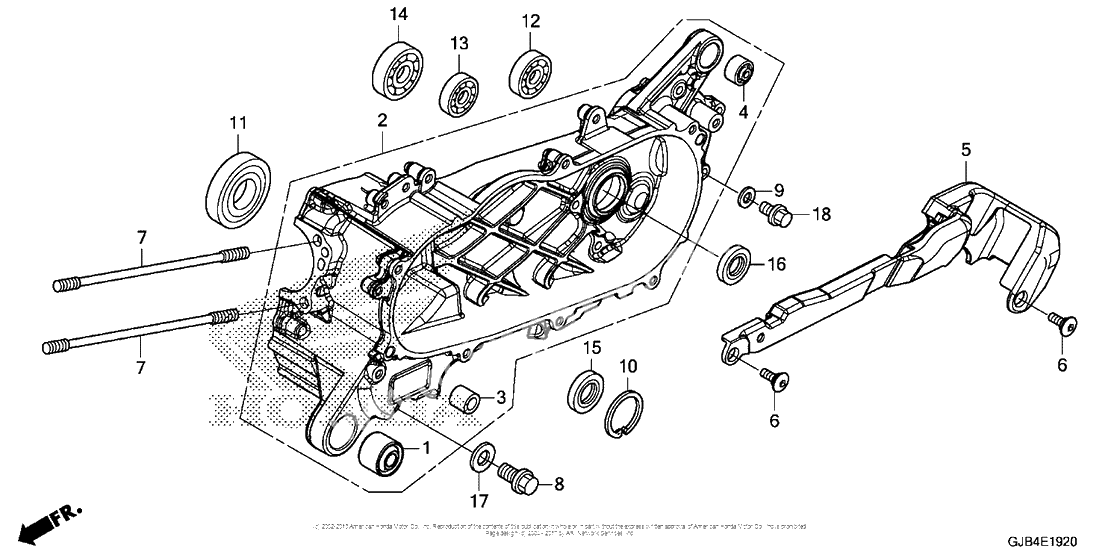

Left crankcase
Left crankcase
New Genuine Part (Ref #1)
1
Part #11103-GGZ-J00
Crankcase, l. (Ref #2)
2
Part #11200-GGZ-J01
Bush,m stand (Ref #3)
3
Part #11205-GBC-300
New Genuine Part (Ref #4)
4
Part #11205-GGZ-J00
New Genuine Part (Ref #5)
5
Part #32112-GGZ-J00
Bolt,socket 6x18 (Ref #6)
6
Part #90001-KWR-000
New Genuine Part (Ref #7)
7
Part #90031-GGZ-J00
ПРОБКА СЛИВНАЯ (Ref #8)
8
Part #90131-896-650
Washer, sealing, 8mm (Ref #9)
9
Part #90474-333-000
Circlip (33mm) (Ref #10)
10
Part #90604-MEB-670
New Genuine Part (Ref #11)
11
Part #91002-GGZ-J02
Bearing, radial ball, 6202 (Ref #12)
12
Part #96100-6202000
Bearing (6201) (Ref #13)
13
Part #91006-KZR-601
Bearing (6203) (Ref #14)
14
Part #96100-6203300
Oil seal (19x32x6) (Ref #15)
15
Part #91202-GEE-003
New Genuine Part (Ref #16)
16
Part #91204-GGZ-J01
Шайба (Ref #17)
17
Part #94109-12000
Bolt, flange, 8x12 (Ref #18)
18
Part #95701-0801200
