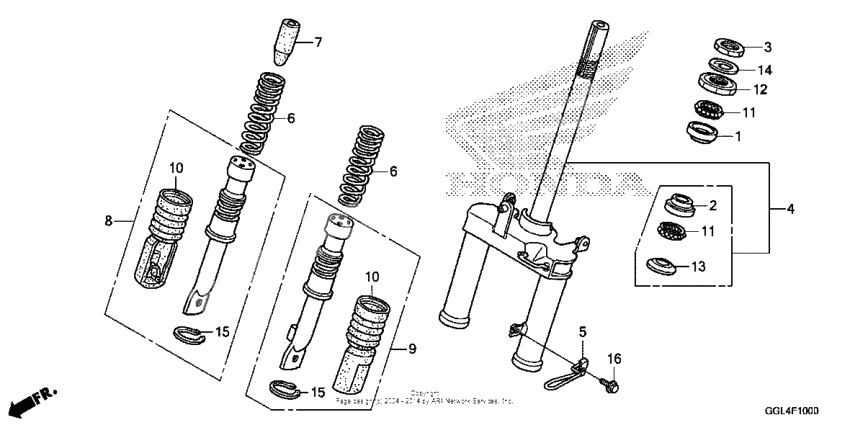

Front fork
Front fork
Race, steering upper ball (Ref #1)
1
Part #50301-GM0-000
Race, steering under ball (Ref #2)
2
Part #50305-GE8-680
Nut,strg stem loc (Ref #3)
3
Part #50306-GFC-900
Fork sub-assy., fr. (Ref #4)
4
Part #51110-GGL-305
Guide c0mp brk cable (Ref #5)
5
Part #51120-GGL-J00
Spring fr fork (Ref #6)
6
Part #51401-GFC-771
Spring fr fork (Ref #6)
6
Part #51401-GFC-771
Spring fr fork (Ref #6)
6
Part #51401-GFC-771
Spring fr fork (Ref #6)
6
Part #51401-GFC-771
RUBBER,STOPPER (Ref #7)
7
Part #51406-GFC-771
Pipe assy,r slide (Ref #8)
8
Part #51420-GFC-771
Pipe assy,l slide (Ref #9)
9
Part #51520-GFC-771
BOOT, FR. FORK (Ref #10)
10
Part #51611-GFC-771
BOOT, FR. FORK (Ref #10)
10
Part #51611-GFC-771
BOOT, FR. FORK (Ref #10)
10
Part #51611-GFC-771
BOOT, FR. FORK (Ref #10)
10
Part #51611-GFC-771
Ball, steering steel (Ref #11)
11
Part #53210-GFM-970
Ball, steering steel (Ref #11)
11
Part #53210-GFM-970
Ball, steering steel (Ref #11)
11
Part #53210-GFM-970
Ball, steering steel (Ref #11)
11
Part #53210-GFM-970
Race,strg top con (Ref #12)
12
Part #53211-KCW-870
Race (Ref #13)
13
Part #53212-GFC-901
Washer,lock nut (Ref #14)
14
Part #90506-KCW-870
Circlip,in 38 (Ref #15)
15
Part #90652-GFC-771
Circlip,in 38 (Ref #15)
15
Part #90652-GFC-771
Circlip,in 38 (Ref #15)
15
Part #90652-GFC-771
Circlip,in 38 (Ref #15)
15
Part #90652-GFC-771
BOLT (Ref #16)
16
Part #95701-060-120-7
