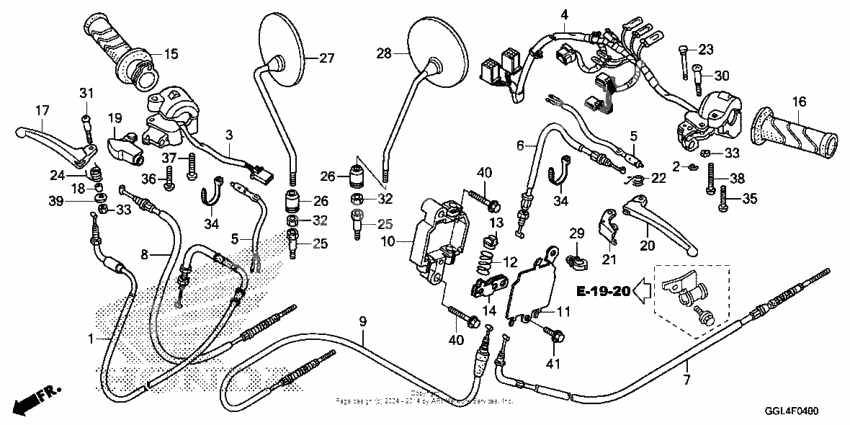

Handle lever + switch + cable
Handle lever + switch + cable
Cable c0mp thr0t (Ref #1)
1
Part #17910-GGL-J02
Cable c0mp thr0t (Ref #1)
1
Part #17910-GGL-J01
E-clip (Ref #2)
2
Part #30158-700-010
Sw assy,st eng st (Ref #3)
3
Part #35130-GGL-A01
Sw assy,winker (Ref #4)
4
Part #35200-GGL-A01
Sw assy fr st0p (Ref #5)
5
Part #35340-GGL-J01
Sw assy fr st0p (Ref #5)
5
Part #35340-GGL-J01
Sw assy fr st0p (Ref #5)
5
Part #35340-GGL-J01
Sw assy fr st0p (Ref #5)
5
Part #35340-GGL-J01
Cable c0mp 1st rr brk (Ref #6)
6
Part #43440-GGL-J01
Cable c0mp 2nd rr brk (Ref #7)
7
Part #43450-GGL-J01
Cable c0mp 1st fr brk (Ref #8)
8
Part #45440-GGL-J01
Cable c0mp 2nd fr brk (Ref #9)
9
Part #45450-GGL-J01
Bracket brake (Ref #10)
10
Part #47601-GGL-J00
C0ver bracket (Ref #11)
11
Part #47602-GGL-J00
Spring delay (Ref #12)
12
Part #47604-GGL-J00
St0pper equalizer (Ref #13)
13
Part #47605-GGL-J00
Equalizer (Ref #14)
14
Part #47651-GGL-J00
Grip *yr167r* (Ref #15)
15
Part #53140-GGL-305ZB
Grip *nh1l* (Ref #15)
15
Part #53140-GGL-305ZA
Grip, l. *yr167r* (Ref #16)
16
Part #53166-GGL-305ZB
Grip, l. *nh1l* (Ref #16)
16
Part #53166-GGL-305ZA
Lever, r. handlebar (Ref #17)
17
Part #53175-GEL-305
Guide, return spring (Ref #18)
18
Part #53176-GET-000
Cover,r hndl.leve (Ref #19)
19
Part #53176-GFC-950
Lever, l. handlebar (Ref #20)
20
Part #53178-GGL-305
Lever comp,brk lo (Ref #21)
21
Part #53181-GFC-770
Spring,return,lev (Ref #22)
22
Part #53182-GW3-980
Pin,pivot parking (Ref #23)
23
Part #53183-GW3-980
Пружина (Ref #24)
24
Part #53199-GEE-010
Bolt 8x14 adpt (Ref #25)
25
Part #88115-GAH-790
Bolt 8x14 adpt (Ref #25)
25
Part #88115-GAH-790
Bolt 8x14 adpt (Ref #25)
25
Part #88115-GAH-790
Bolt 8x14 adpt (Ref #25)
25
Part #88115-GAH-790
Cap,lock nut (Ref #26)
26
Part #88116-GFC-B40
Cap,lock nut (Ref #26)
26
Part #88116-GFC-B40
Cap,lock nut (Ref #26)
26
Part #88116-GFC-B40
Cap,lock nut (Ref #26)
26
Part #88116-GFC-B40
Mirror assy., r (Ref #27)
27
Part #88210-GGL-305
Mirror assy., l. (Ref #28)
28
Part #88220-GGL-305
Clip,harn (Ref #29)
29
Part #90112-GFC-J31
Screw (5mm) (Ref #30)
30
Part #90115-147-000
Болт (Ref #31)
31
Part #90115-GBL-870
Nut,hex.,8mm (Ref #32)
32
Part #90201-GC8-650
Nut,hex.,8mm (Ref #32)
32
Part #90201-GC8-650
Nut,hex.,8mm (Ref #32)
32
Part #90201-GC8-650
Nut,hex.,8mm (Ref #32)
32
Part #90201-GC8-650
Nut, hex., 5mm (Ref #33)
33
Part #90302-435-761
Nut, hex., 5mm (Ref #33)
33
Part #90302-435-761
Nut, hex., 5mm (Ref #33)
33
Part #90302-435-761
Nut, hex., 5mm (Ref #33)
33
Part #90302-435-761
Band, wire (Ref #34)
34
Part #90650-KYS-941
Band, wire (Ref #34)
34
Part #90650-KYS-941
Band, wire (Ref #34)
34
Part #90650-KYS-941
Band, wire (Ref #34)
34
Part #90650-KYS-941
Болт (Ref #35)
35
Part #93500-050-280-A
Screw, pan, 5x32 (Ref #36)
36
Part #93500-050320A
Screw, pan, 5x35 (Ref #37)
37
Part #93500-050350A
Screw, pan, 5x40 (Ref #38)
38
Part #93500-050400A
Шайба (Ref #39)
39
Part #94103-05000
BOLT (Ref #40)
40
Part #95701-060-300-8
BOLT (Ref #40)
40
Part #95701-060-300-8
BOLT (Ref #40)
40
Part #95701-060-300-8
BOLT (Ref #40)
40
Part #95701-060-300-8
BOLT (Ref #41)
41
Part #96001-060-120-0
