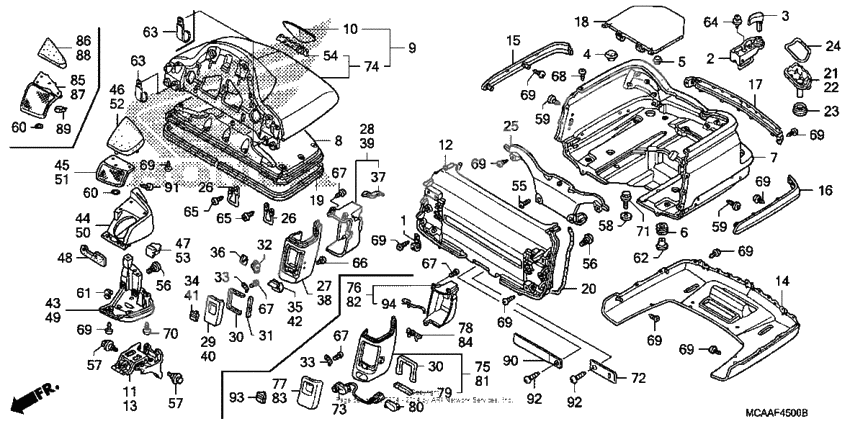

Trunk box
Trunk box
Clip, pulser cord (Ref #1)
1
Part #32925-958-000
Holder assy., helmet (Ref #2)
2
Part #50710-MCA-003
Knob, helmet holder (Ref #3)
3
Part #50714-MCA-000
Knob, helmet holder (Ref #3)
3
Part #50714-MCA-S40
Cap, main stand pipe (Ref #4)
4
Part #50750-MB0-000
Rubber, stopper (Ref #5)
5
Part #80105-MAH-610
RUBBER (Ref #6)
6
Part #80202-MCA-000
Box, trunk *b191m* (Ref #7)
7
Part #81111-MCA-000YG
Box, trunk *b205m* (Ref #7)
7
Part #81111-MCA-000YE
Box, trunk *r287m* (Ref #7)
7
Part #81111-MCA-000ZM
Box, trunk *yr292m* (Ref #7)
7
Part #81111-MCA-000YH
Box, trunk *y130p* (Ref #7)
7
Part #81111-MCA-000ZD
Box, trunk *nha54m* (Ref #7)
7
Part #81111-MCA-000YF
Inner lid, trunk (Ref #8)
8
Part #81123-MCA-000
Петля (Ref #11)
11
Part #81130-MCA-000
Panel, fr. trunk (Ref #12)
12
Part #81131-MCA-A70
Петля (Ref #13)
13
Part #81135-MCA-A60
Cvr, trunk *yr292m* (Ref #14)
14
Part #81141-MCA-000YH
Cover, trunk *y130p* (Ref #14)
14
Part #81141-MCA-000ZD
Cover, trunk *b191m* (Ref #14)
14
Part #81141-MCA-000YG
Cvr, trunk *nha54m* (Ref #14)
14
Part #81141-MCA-000YF
Cover, trunk *b205m* (Ref #14)
14
Part #81141-MCA-000YE
Cover, trunk *r287m* (Ref #14)
14
Part #81141-MCA-000ZM
Molding, r. *yr292m* (Ref #15)
15
Part #81161-MCA-000YH
Molding, r. *y130p* (Ref #15)
15
Part #81161-MCA-000ZD
Molding, r. *b191m* (Ref #15)
15
Part #81161-MCA-000YG
Molding, r. *nha54m* (Ref #15)
15
Part #81161-MCA-000YF
Molding, r. *b205m* (Ref #15)
15
Part #81161-MCA-000YE
Molding, r. *r287m* (Ref #15)
15
Part #81161-MCA-000ZM
Molding, l. *b191m* (Ref #16)
16
Part #81162-MCA-000YG
Molding, l. *nha54m* (Ref #16)
16
Part #81162-MCA-000YF
Molding, l. *b205m* (Ref #16)
16
Part #81162-MCA-000YE
Molding, l. *r287m* (Ref #16)
16
Part #81162-MCA-000ZM
Molding, l. *yr292m* (Ref #16)
16
Part #81162-MCA-000YH
Molding, l. *y130p* (Ref #16)
16
Part #81162-MCA-000ZD
Molding *nha54m* (Ref #17)
17
Part #81163-MCA-000YF
Molding *r287m* (Ref #17)
17
Part #81163-MCA-000ZM
Molding *yr292m* (Ref #17)
17
Part #81163-MCA-000YH
Molding *y130p* (Ref #17)
17
Part #81163-MCA-000ZD
Molding *b205m* (Ref #17)
17
Part #81163-MCA-000YE
Molding *b191m* (Ref #17)
17
Part #81163-MCA-000YG
Cover, trunk (inner) (Ref #18)
18
Part #81171-MCA-000
Rubber, trunk seal (Ref #19)
19
Part #81181-MCA-000
Rubber, fr. panel (Ref #20)
20
Part #81183-MCA-000
Cvr, r. trunk light (Ref #21)
21
Part #81191-MCA-000
Cvr, l. trunk light (Ref #22)
22
Part #81192-MCA-000
Rubber (lower) (Ref #23)
23
Part #81193-MCA-000
Rubber (upper) (Ref #24)
24
Part #81194-MCA-000
Cover, trunk catch (Ref #25)
25
Part #81309-MCA-000
Скоба крышки багажника (Ref #26)
26
Part #81328-MCA-780
Скоба крышки багажника (Ref #26)
26
Part #81328-MCA-780
Скоба крышки багажника (Ref #26)
26
Part #81328-MCA-780
Скоба крышки багажника (Ref #26)
26
Part #81328-MCA-780
Rubber a (Ref #30)
30
Part #82130-MCA-300
Rubber a (Ref #30)
30
Part #82130-MCA-300
Rubber a (Ref #30)
30
Part #82130-MCA-300
Rubber a (Ref #30)
30
Part #82130-MCA-300
Spring, trunk pocket (Ref #33)
33
Part #82150-MCA-000
Spring, trunk pocket (Ref #33)
33
Part #82150-MCA-000
Spring, trunk pocket (Ref #33)
33
Part #82150-MCA-000
Spring, trunk pocket (Ref #33)
33
Part #82150-MCA-000
Body, r. *nh1* (Ref #43)
43
Part #82310-MCA-A60ZA
Cover a, r. *nh1* (Ref #44)
44
Part #82320-MCA-A60ZA
Body, l. *nh1* (Ref #49)
49
Part #82410-MCA-A60ZA
Cover a, l. *nh1* (Ref #50)
50
Part #82420-MCA-A60ZA
Emblem, rr. trunk (Ref #54)
54
Part #87111-MCA-A60
Screw, pan (5x12) (Ref #55)
55
Part #90104-964-000
Screw, pan (6x11) (Ref #56)
56
Part #90106-KY2-701
Screw, pan (6x11) (Ref #56)
56
Part #90106-KY2-701
Screw, pan (6x11) (Ref #56)
56
Part #90106-KY2-701
Screw, pan (6x11) (Ref #56)
56
Part #90106-KY2-701
Washer, tank setting (Ref #58)
58
Part #90136-428-870
Screw, tap (5x12) (Ref #59)
59
Part #90140-MCA-000
Screw, tap (5x12) (Ref #59)
59
Part #90140-MCA-000
Screw, tap (5x12) (Ref #59)
59
Part #90140-MCA-000
Screw, tap (5x12) (Ref #59)
59
Part #90140-MCA-000
Nut, clip (Ref #60)
60
Part #90301-GE0-000
Nut, clip (Ref #60)
60
Part #90301-GE0-000
Nut, clip (Ref #60)
60
Part #90301-GE0-000
Nut, clip (Ref #60)
60
Part #90301-GE0-000
Nut, special (6mm) (Ref #61)
61
Part #90302-MN5-300
Colr, trunk mounting (Ref #62)
62
Part #90505-MCA-000
Clip, wire harness (Ref #63)
63
Part #91405-MG1-000
Clip, wire harness (Ref #63)
63
Part #91405-MG1-000
Clip, wire harness (Ref #63)
63
Part #91405-MG1-000
Clip, wire harness (Ref #63)
63
Part #91405-MG1-000
Screw-washer (Ref #64)
64
Part #93893-060-120-7
Болт (Ref #65)
65
Part #93901-25380
Болт (Ref #65)
65
Part #93901-25380
Болт (Ref #65)
65
Part #93901-25380
Болт (Ref #65)
65
Part #93901-25380
Болт (Ref #68)
68
Part #93903-25080
Болт (Ref #70)
70
Part #93903-25380
BOLT (Ref #71)
71
Part #96001-060-280-0
Держатель соединения (Ref #72)
72
Part #32189-MCA-H00
Switch assy (Ref #73)
73
Part #39500-MCA-R31
Lid set *y130p* (Ref #74)
74
Part #81125-MCA-A60ZY
Lid set *yr292m* (Ref #74)
74
Part #81125-MCA-A60ZX
Lid set *b191m* (Ref #74)
74
Part #81125-MCA-A60ZW
Lid set *r287m* (Ref #74)
74
Part #81125-MCA-A60ZV
Lid set *b205m* (Ref #74)
74
Part #81125-MCA-A60ZT
Lid set *nha54m* (Ref #74)
74
Part #81125-MCA-A60ZU
Outer, r. *nh1* (Ref #75)
75
Part #82111-MCA-A60ZA
Обойма коллектора (Ref #76)
76
Part #82112-MCA-A60
LID, RH TRUNK POCKET *NH1* (BLACK) (Ref #77)
77
Part #82120-MCA-A60ZA
Rubber, r. hinge (Ref #78)
78
Part #82141-MCA-A60
RUBBER (Ref #79)
79
Part #82207-MCA-A60
Outer, l. *nh1* (Ref #81)
81
Part #82211-MCA-A60ZA
Inner, l (Ref #82)
82
Part #82212-MCA-A60
LID, LH TRUNK POCKET *NH1* (BLACK) (Ref #83)
83
Part #82220-MCA-A60ZA
Rubber, l. hinge (Ref #84)
84
Part #82241-MCA-A60
Cover b, r. *nh1* (Ref #85)
85
Part #82330-MCA-A60ZA
Cushion, r. *nh1* (Ref #86)
86
Part #82340-MCA-A60ZA
Cover b, l. *nh1* (Ref #87)
87
Part #82430-MCA-A60ZA
Cushion, l. *nh1* (Ref #88)
88
Part #82440-MCA-A60ZA
CLIP (Ref #89)
89
Part #90666-S84-A01
Clip (2x70) (Ref #90)
90
Part #91410-MN1-671
Lever *nh1* (Ref #93)
93
Part #82160-MCA-A60ZA
Rubber c (Ref #94)
94
Part #82190-MCA-A60
