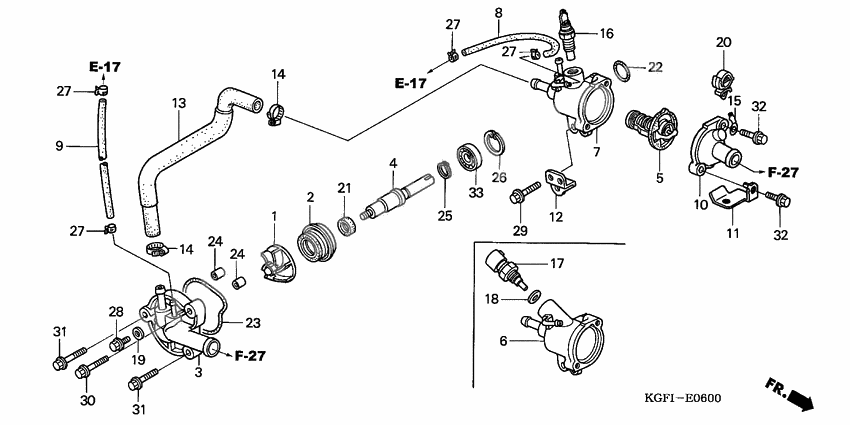

Водяной насос
Водяной насос
Крыльчатка водной помпы (Ref #1)
1
Part #19215-KGF-910
Seal, mechanical (Ref #2)
2
Part #19217-657-023
Cover comp,water (Ref #3)
3
Part #19220-KGF-910
Shaft, water pump (Ref #4)
4
Part #19231-KGF-910
Thermostat (Ref #5)
5
Part #19300-KGF-911
Case comp,thermos (Ref #7)
7
Part #19310-KGF-910
Tube,water,c 3.5x (Ref #8)
8
Part #19313-KGF-910
Tube,water,d 3.5x (Ref #9)
9
Part #19314-KGF-910
Cover,thermostat (Ref #10)
10
Part #19315-KGF-910
Plate,thermostat (Ref #11)
11
Part #19316-KGF-910
Plate,solenoidbas (Ref #12)
12
Part #19346-KGF-910
Hose d,water (Ref #13)
13
Part #19504-KGF-910
Струбцина (Ref #14)
14
Part #19507-MK4-000
Струбцина (Ref #14)
14
Part #19507-MK4-000
Струбцина (Ref #14)
14
Part #19507-MK4-000
Струбцина (Ref #14)
14
Part #19507-MK4-000
Connector, ground (Ref #15)
15
Part #32152-MB3-000
Лента (Ref #16)
16
Part #37750-MAZ-003
Washer a, 6mm (Ref #19)
19
Part #90478-700-000
Clip, harness (Ref #20)
20
Part #90684-ZA0-601
Oil seal, 14x22x5 (Ref #21)
21
Part #91203-KK3-830
Прокладка (Ref #22)
22
Part #91307-PJ4-000
GASKET,WATER PUMP (Ref #23)
23
Part #19226-KRJ-900
Dowel pin (Ref #24)
24
Part #94301-08140
Dowel pin (Ref #24)
24
Part #94301-08140
Dowel pin (Ref #24)
24
Part #94301-08140
Dowel pin (Ref #24)
24
Part #94301-08140
Circlip (Ref #25)
25
Part #94510-10000
Circlip (Ref #26)
26
Part #94520-26000
BOLT (Ref #28)
28
Part #95701-060-120-0
BOLT (Ref #29)
29
Part #95701-060-200-0
BOLT (Ref #30)
30
Part #95701-060-250-0
Bolt, flange, 6x35 (Ref #31)
31
Part #95701-0603500
Bolt, flange, 6x35 (Ref #31)
31
Part #95701-0603500
Bolt, flange, 6x35 (Ref #31)
31
Part #95701-0603500
Bolt, flange, 6x35 (Ref #31)
31
Part #95701-0603500
BOLT (Ref #32)
32
Part #96001-060-160-0
BOLT (Ref #32)
32
Part #96001-060-160-0
BOLT (Ref #32)
32
Part #96001-060-160-0
BOLT (Ref #32)
32
Part #96001-060-160-0
Bearing, radial ball, 6000 (Ref #33)
33
Part #96100-6000000
-
2291301-KV7-671
O-ring, 14.8x1.9 (arai)
1Replaced by 91307-PJ4-000 Доступно: Нет в наличии
-
-
Цена: 280.00 р.
Доступно: 2
-
