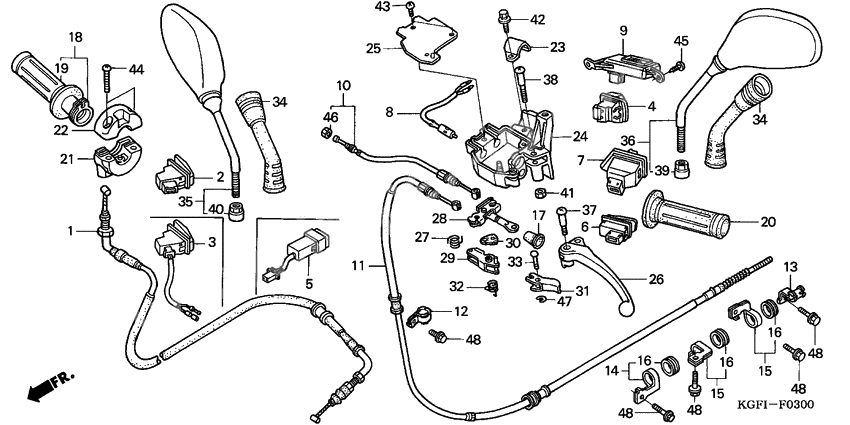

Handle lever/switch/cable
Handle lever/switch/cable
Cable comp,throt (Ref #1)
1
Part #17910-KGF-900
Switch unit, starter (Ref #2)
2
Part #35160-KFG-003
Sw unit,dimmer&pa (Ref #4)
4
Part #35170-KFG-003
Sw.unit,horn (Ref #6)
6
Part #35180-GAV-701
Sw.unit,winker (Ref #7)
7
Part #35200-GAV-701
Switch, fr. stop (Ref #8)
8
Part #35340-GZ9-003
Clock assy digita (Ref #9)
9
Part #37460-KGF-902
Cable comp,fr brk (Ref #10)
10
Part #43440-KGF-900
Cable comp,rr brk (Ref #11)
11
Part #43450-KGF-900
Clamper,rr brk ca (Ref #12)
12
Part #43455-GCK-000
Clamper,rr brk ca (Ref #13)
13
Part #43456-KGF-900
Guide assy,brk ca (Ref #14)
14
Part #43460-KEY-900
Guide assy,brk ca (Ref #15)
15
Part #43460-KGF-900
Guide assy,brk ca (Ref #15)
15
Part #43460-KGF-900
Guide assy,brk ca (Ref #15)
15
Part #43460-KGF-900
Guide assy,brk ca (Ref #15)
15
Part #43460-KGF-900
Ботинок (Ref #17)
17
Part #45504-410-003
Grip comp,throt (Ref #18)
18
Part #53140-GAV-G00
Grip,r.handle (Ref #19)
19
Part #53165-GW2-000
Grip,l.handle (Ref #20)
20
Part #53166-GW2-000
Housing,und throt (Ref #21)
21
Part #53167-GAH-A00
Housing,up throt (Ref #22)
22
Part #53168-GAH-A00
Band,handle brkt (Ref #23)
23
Part #53171-GBL-870
Bracket,l brake l (Ref #24)
24
Part #53172-GCS-000
Cover,l brk lever (Ref #25)
25
Part #53173-KGF-900
Lever,l strg hand (Ref #26)
26
Part #53178-GCS-000
Spring,rr brk loc (Ref #27)
27
Part #53182-GCS-000
Equalizer comp (Ref #28)
28
Part #53184-KGF-900
Arm comp,rr brk l (Ref #29)
29
Part #53185-KGF-900
Cover,rr brk lock (Ref #30)
30
Part #53186-GCS-000
LEVER,BRAKE LOCK (Ref #31)
31
Part #53187-KGF-900
Spg,brk lock leve (Ref #32)
32
Part #53188-GCS-000
Pin,brk lock leve (Ref #33)
33
Part #53189-KGF-900
Boot,mirror (Ref #34)
34
Part #88113-GCS-000
Boot,mirror (Ref #34)
34
Part #88113-GCS-000
Boot,mirror (Ref #34)
34
Part #88113-GCS-000
Boot,mirror (Ref #34)
34
Part #88113-GCS-000
Mirror comp,r (Ref #35)
35
Part #88210-KGF-900
Mirror comp,l (Ref #36)
36
Part #88220-KGF-900
Болт (Ref #37)
37
Part #90113-GE8-000
Болт (Ref #37)
37
Part #90113-KGF-900
Болт (Ref #38)
38
Part #90115-GBL-870
Nut, lock (Ref #39)
39
Part #90134-GM8-000
Nut,lock lh (Ref #40)
40
Part #90135-KGF-900
Nut, hex., 5mm (Ref #41)
41
Part #90302-435-761
Bolt-washer (Ref #42)
42
Part #93401-060-200-0
Болт (Ref #43)
43
Part #93500-050-120-H
Screw, pan, 5x22 (Ref #44)
44
Part #93500-050220A
Болт (Ref #45)
45
Part #93903-34310
Гайка (Ref #46)
46
Part #94002-080-000-S
E-RING (Ref #47)
47
Part #94540-03018
