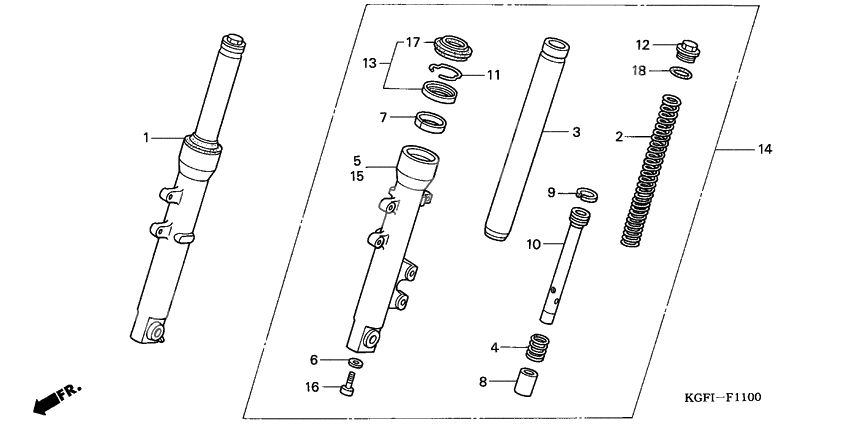

Front
Front
Fork assy,r fr (Ref #1)
1
Part #51400-KGF-893
SPRING,FR FORK (Ref #2)
2
Part #51401-KGF-892
Pipe comp,fr fork (Ref #3)
3
Part #51410-KGF-892
Spring,fr rebound (Ref #4)
4
Part #51411-KGF-902
Case,r bottom (Ref #5)
5
Part #51420-KGF-903
Washer,oil bolt (Ref #6)
6
Part #51422-KGF-902
BUSH,GUIDE (Ref #7)
7
Part #51424-KGF-902
PIECE,OIL LOCK (Ref #8)
8
Part #51431-KGF-902
RING,PISTON (Ref #9)
9
Part #51437-KGF-902
PIPE,SEAT (Ref #10)
10
Part #51440-KGF-892
Кольцо (Ref #11)
11
Part #51447-KGF-902
BOLT,FR FORK (Ref #12)
12
Part #51450-KGF-902
SEAL SET,FR FORK (Ref #13)
13
Part #51490-KGF-902
Fork assy,l fr (Ref #14)
14
Part #51500-KGF-892
Case,l bottom (Ref #15)
15
Part #51520-KGF-902
Bolt,socket 10x30 (Ref #16)
16
Part #90116-KGF-902
Уплотнение (Ref #17)
17
Part #91254-KGF-902
O ring 23.7x3.5 (Ref #18)
18
Part #91356-KGF-902
