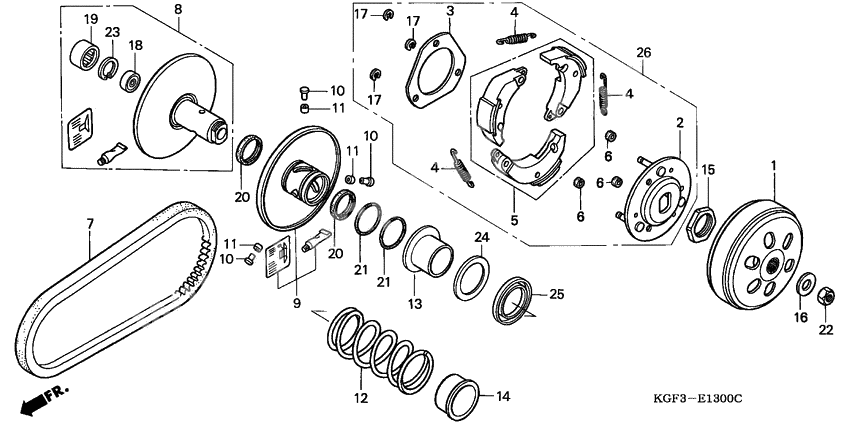

Driven face
Driven face
Clutch outer (Ref #1)
1
Part #22101-KCW-850
Plate comp,drive (Ref #2)
2
Part #22350-KGF-911
Plate,clutch side (Ref #3)
3
Part #22361-KGF-910
Weight set,clutch (Ref #5)
5
Part #22535-KGF-910
BELT,DRIVE (Ref #7)
7
Part #23100-KGF-901
Face set,driven (Ref #8)
8
Part #23205-KGF-910
Face set,movable (Ref #9)
9
Part #23224-KGF-911
Face set (Ref #9)
9
Part #23224-KGF-912
Spg,driven face (Ref #12)
12
Part #23233-KGF-911
Collar, seal (Ref #13)
13
Part #23237-KGF-910
Collar, spring (Ref #14)
14
Part #23238-KGF-910
Nut, special (28mm) (Ref #15)
15
Part #90202-187-000
Washer,12.2x29x2. (Ref #16)
16
Part #90441-GY6-940
Bearing (6902u) (Ref #18)
18
Part #91002-GA7-701
Bearing (22x29x18) (Ref #19)
19
Part #91002-KFG-003
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Прокладка (Ref #21)
21
Part #91384-SF1-J62
Прокладка (Ref #21)
21
Part #91384-SF1-J62
Прокладка (Ref #21)
21
Part #91384-SF1-J62
Прокладка (Ref #21)
21
Part #91384-SF1-J62
Прокладка (Ref #21)
21
Part #91384-SF1-J61
Прокладка (Ref #21)
21
Part #91384-SF1-J61
Прокладка (Ref #21)
21
Part #91384-SF1-J61
Прокладка (Ref #21)
21
Part #91384-SF1-J61
O-ring,38.8x1.9 (Ref #21)
21
Part #91384-KRJ-901
O-ring,38.8x1.9 (Ref #21)
21
Part #91384-KRJ-901
O-ring,38.8x1.9 (Ref #21)
21
Part #91384-KRJ-901
O-ring,38.8x1.9 (Ref #21)
21
Part #91384-KRJ-901
Nut, hex., 12mm (Ref #22)
22
Part #9403012200
Circlip (Ref #23)
23
Part #94520-28000
Seat, driven spring (Ref #24)
24
Part #22109-KGF-910
Cap,spg (Ref #25)
25
Part #23239-KGF-910
Plate assy,drive (Ref #26)
26
Part #22300-KGF-912
