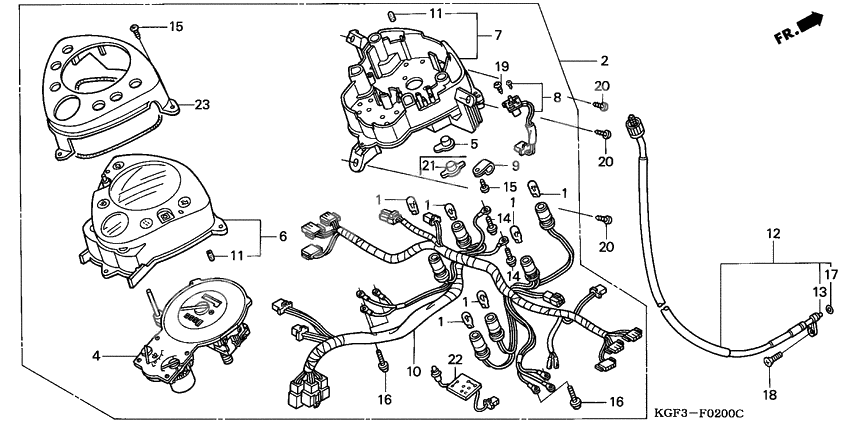

Meter
Meter
Meter assy,comb (Ref #2)
2
Part #37100-KGF-901
Meter comp,comb (Ref #4)
4
Part #37110-KGF-901
CAP (Ref #5)
5
Part #37113-ML7-008
Upper case assy (Ref #6)
6
Part #37120-KGF-901
Lower case assy (Ref #7)
7
Part #37130-KGF-901
Кронштейн (Ref #8)
8
Part #37140-KGF-901
CLAMP (Ref #9)
9
Part #37121-ML7-671
Socket comp (Ref #10)
10
Part #37223-KGF-901
Rubber, cushion (Ref #11)
11
Part #37304-198-901
Rubber, cushion (Ref #11)
11
Part #37304-198-901
Rubber, cushion (Ref #11)
11
Part #37304-198-901
Rubber, cushion (Ref #11)
11
Part #37304-198-901
Cable assy,spdmt (Ref #12)
12
Part #44830-KGF-900
Cable comp,inner (Ref #13)
13
Part #44831-KGF-900
Screw-washer (Ref #14)
14
Part #90035-166-008
Screw-washer (Ref #14)
14
Part #90035-166-008
Screw-washer (Ref #14)
14
Part #90035-166-008
Screw-washer (Ref #14)
14
Part #90035-166-008
Screw, tap (4x14) (Ref #15)
15
Part #90109-MZ5-008
Screw, tap (4x14) (Ref #15)
15
Part #90109-MZ5-008
Screw, tap (4x14) (Ref #15)
15
Part #90109-MZ5-008
Screw, tap (4x14) (Ref #15)
15
Part #90109-MZ5-008
Screw-washer (Ref #16)
16
Part #90131-SF4-003
Screw-washer (Ref #16)
16
Part #90131-SF4-003
Screw-washer (Ref #16)
16
Part #90131-SF4-003
Screw-washer (Ref #16)
16
Part #90131-SF4-003
O-ring,7x1.75 (Ref #17)
17
Part #91351-KEB-621
Screw, oval (5x18) (Ref #18)
18
Part #93700-050180A
Болт (Ref #19)
19
Part #93901-22320
Upper cover assy (Ref #23)
23
Part #37150-KGF-901
