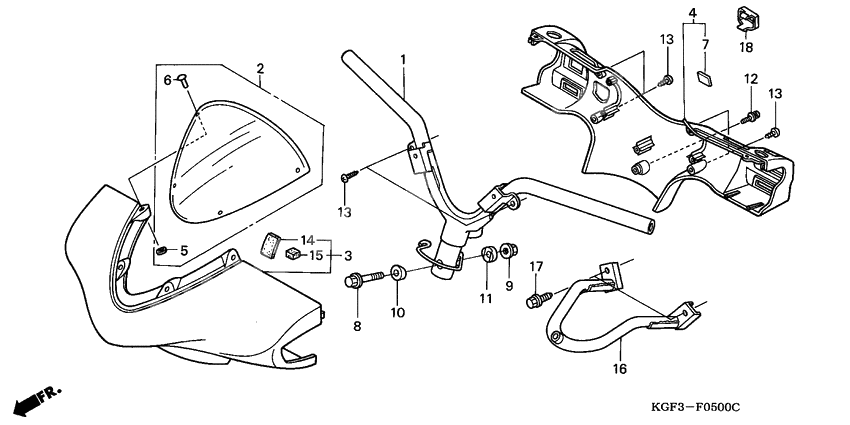

Handle pipe/handle cover
Handle pipe/handle cover
Handle comp,strg (Ref #1)
1
Part #53100-KGF-900
Visor set (Ref #2)
2
Part #06532-KGF-900
Cover set,ha*nh1* (Ref #3)
3
Part #53210-KGF-900ZL
Cover set*pb342m* (Ref #3)
3
Part #53210-KGF-900ZQ
Cover set*pb342m* (Ref #4)
4
Part #53207-KGF-900ZP
Cover set,ha*nh1* (Ref #4)
4
Part #53207-KGF-900ZJ
Nut, speed (4mm) (Ref #5)
5
Part #64206-MJ0-000
Pin, screen setting (Ref #6)
6
Part #64206-ML0-700
Mark,wing (Ref #7)
7
Part #86150-MY5-860
Bolt, flange, 10x50 (Ref #8)
8
Part #90106-GN5-900
Nut, u, 10mm (Ref #9)
9
Part #90304-GE8-003
Collar a (Ref #10)
10
Part #90501-GBY-910
Collar b (Ref #11)
11
Part #90502-GBY-910
Screw-washer, 5x20 (Ref #12)
12
Part #93891-0502007
Rubber, battery (Ref #14)
14
Part #50383-GB6-300
Rubber,side cover (Ref #15)
15
Part #83509-KBS-900
Stay,wind shield (Ref #16)
16
Part #53105-KGF-900
Bolt, flange, 8x12 (Ref #17)
17
Part #95701-0801200
