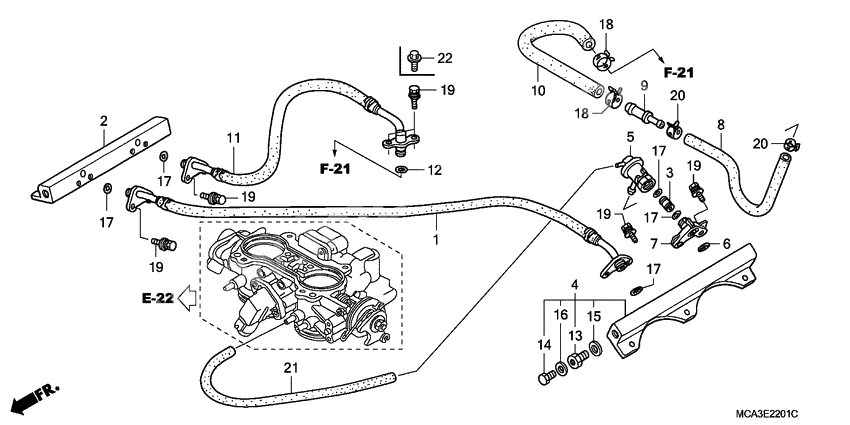

Throttle body TUBING
Throttle body TUBING
Hose, fuel feed (Ref #1)
1
Part #16527-MCA-003
Pipe, r. fuel (Ref #2)
2
Part #16610-MCA-000
Joint, straight (Ref #3)
3
Part #16614-MCA-000
Pipe, l. fuel (Ref #4)
4
Part #16620-MCA-000
Regulator, pressure (Ref #5)
5
Part #16740-MCA-003
Прокладка (Ref #6)
6
Part #16741-PG7-005
STAY (Ref #7)
7
Part #16745-MCA-000
Hose, fuel return (Ref #8)
8
Part #17525-MCA-003
Joint, fuel return (Ref #9)
9
Part #17526-MCA-000
Hose a, fuel return (Ref #10)
10
Part #17527-MCA-000
Hose, fuel feed (Ref #11)
11
Part #17528-MCA-A61
Прокладка (Ref #12)
12
Part #17530-MCA-000
Bolt, banjo (12mm) (Ref #13)
13
Part #90008-MCA-000
BOLT (Ref #14)
14
Part #90009-PP4-E01
Шайба (Ref #15)
15
Part #90428-PD6-003
Шайба (Ref #16)
16
Part #90430-PD6-003
CLAMP (Ref #18)
18
Part #91405-PD1-004
CLAMP (Ref #18)
18
Part #91405-PD1-004
CLAMP (Ref #18)
18
Part #91405-PD1-004
CLAMP (Ref #18)
18
Part #91405-PD1-004
CLAMP (Ref #20)
20
Part #95002-410-500-8
CLAMP (Ref #20)
20
Part #95002-410-500-8
CLAMP (Ref #20)
20
Part #95002-410-500-8
CLAMP (Ref #20)
20
Part #95002-410-500-8
Tube,3.5x290 (Ref #21)
21
Part #95005-352-902-0
