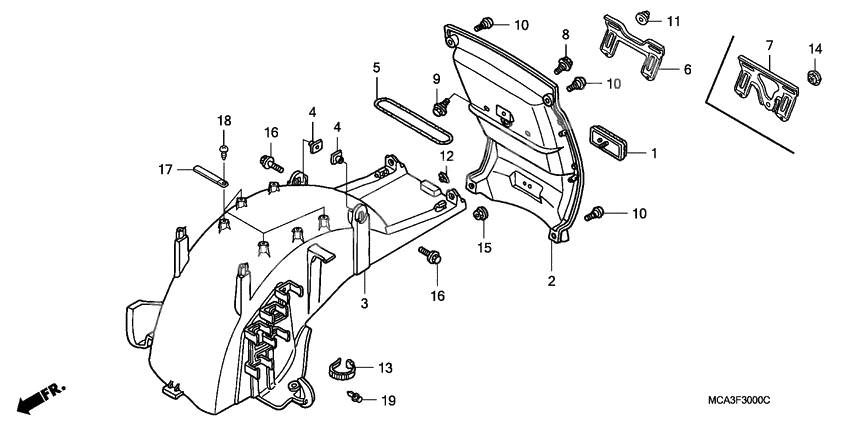

Rear fender 1
Rear fender 1
Reflector, reflex (stanley) (Ref #1)
1
Part #33741-MS6-921
Fender a, rr. *nh1z* (Ref #2)
2
Part #80100-MCA-000ZA
Fdr a, rr. *pb304p* (Ref #2)
2
Part #80100-MCA-000ZB
Fdr a, rr. *r259p* (Ref #2)
2
Part #80100-MCA-000ZC
Fender b, rr. (Ref #3)
3
Part #80101-MCA-010
Nut, rr. fender (Ref #4)
4
Part #80104-KJ2-000
Nut, rr. fender (Ref #4)
4
Part #80104-KJ2-000
Nut, rr. fender (Ref #4)
4
Part #80104-KJ2-000
Nut, rr. fender (Ref #4)
4
Part #80104-KJ2-000
Комплект (Ref #5)
5
Part #80123-GN5-900
Brkt,number plate (Ref #7)
7
Part #84700-MCA-640
Screw, special (6mm) (Ref #8)
8
Part #90106-KCZ-000
Болт (Ref #9)
9
Part #90116-ME9-000
Nut, cap, 6mm (Ref #11)
11
Part #90201-428-900
Nut, spring, 6mm (Ref #12)
12
Part #90320-MM5-000
Band, wire, 165mm (black) (Ref #13)
13
Part #90651-KV6-003
PLUG (Ref #14)
14
Part #90851-SD2-000
Гайка (Ref #15)
15
Part #94050-05080
Bolt, flange, 6x16 (Ref #16)
16
Part #96001-0601607
Bolt, flange, 6x16 (Ref #16)
16
Part #96001-0601607
Bolt, flange, 6x16 (Ref #16)
16
Part #96001-0601607
Bolt, flange, 6x16 (Ref #16)
16
Part #96001-0601607
