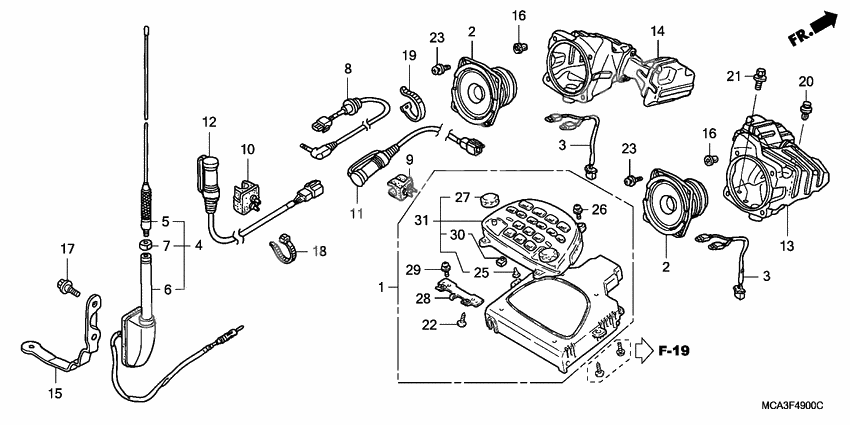

Radio 1
Radio 1
Audio unit comp (Ref #1)
1
Part #39110-MCA-601
Speaker unit (Ref #2)
2
Part #39130-MCA-003
Speaker unit (Ref #2)
2
Part #39130-MCA-003
Speaker unit (Ref #2)
2
Part #39130-MCA-003
Speaker unit (Ref #2)
2
Part #39130-MCA-003
Sub-wire, speaker (Ref #3)
3
Part #39146-MCA-000
Sub-wire, speaker (Ref #3)
3
Part #39146-MCA-000
Sub-wire, speaker (Ref #3)
3
Part #39146-MCA-000
Sub-wire, speaker (Ref #3)
3
Part #39146-MCA-000
Antenna assy., radio (Ref #4)
4
Part #39150-MCA-003
Element, antenna (Ref #5)
5
Part #39151-MCA-000
Feeder, antenna (Ref #6)
6
Part #39152-MCA-000
Nut, antenna (Ref #7)
7
Part #39153-MN5-003
CORD (Ref #8)
8
Part #39170-MCA-000
Connector, fr. (Ref #9)
9
Part #39242-MCA-000
Соединение (Ref #10)
10
Part #39243-MCA-000
Lead, driver head se (Ref #11)
11
Part #39245-MCA-H90
Провод (Ref #12)
12
Part #39246-MCA-003
Box, r. speaker (Ref #13)
13
Part #64231-MCA-000
Box, l. speaker (Ref #14)
14
Part #64236-MCA-000
PLATE (Ref #15)
15
Part #81175-MCA-010
Гайка (Ref #16)
16
Part #90111-KW3-003
Гайка (Ref #16)
16
Part #90111-KW3-003
Гайка (Ref #16)
16
Part #90111-KW3-003
Гайка (Ref #16)
16
Part #90111-KW3-003
Болт (Ref #17)
17
Part #90139-MCA-000
Band, wire, 165mm (black) (Ref #18)
18
Part #90651-KV6-003
Band, wire (black) (Ref #19)
19
Part #90652-KT1-771
CLIP (Ref #20)
20
Part #90657-SB0-003
Bolt-washer (Ref #21)
21
Part #93404-060-120-7
Screw-washer (Ref #22)
22
Part #93891-050-100-8
Screw-washer (Ref #23)
23
Part #93892-050-160-8
Screw-washer (Ref #23)
23
Part #93892-050-160-8
Screw-washer (Ref #23)
23
Part #93892-050-160-8
Screw-washer (Ref #23)
23
Part #93892-050-160-8
Bulb, neo-wedge (Ref #25)
25
Part #39111-MCA-671
Screw, washer (Ref #26)
26
Part #39112-MCA-671
Knob (Ref #27)
27
Part #39113-MCA-671
Stay, top shelter (Ref #28)
28
Part #39114-MCA-671
Screw, washer (Ref #29)
29
Part #39115-MCA-671
Трубка, дренаж (Ref #30)
30
Part #39116-MCA-671
Upper case comp (Ref #31)
31
Part #39120-MCA-601
