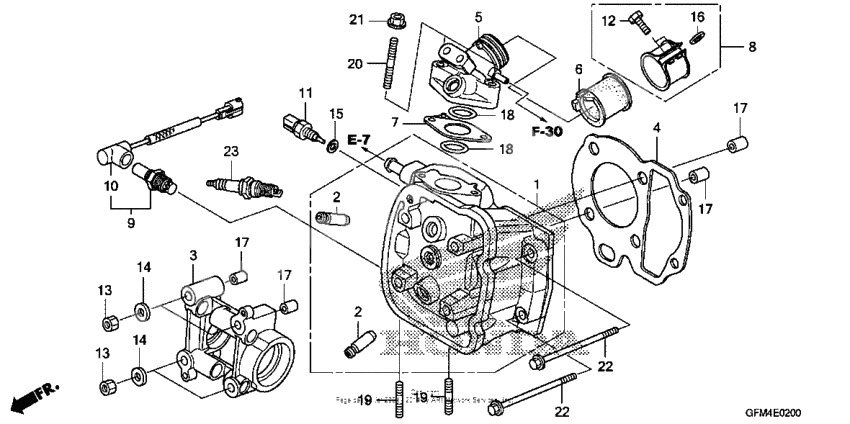

Cylinder head
Cylinder head
Головка цилиндров (Ref #1)
1
Part #12200-GFM-K00
Направляющая клапана (Ref #2)
2
Part #12204-KVB-305
Направляющая клапана (Ref #2)
2
Part #12204-KVB-305
Направляющая клапана (Ref #2)
2
Part #12204-KVB-305
Направляющая клапана (Ref #2)
2
Part #12204-KVB-305
Holder, camshaft (Ref #3)
3
Part #12211-GFM-970
Gasket, cyl hd (Ref #4)
4
Part #12251-GFM-890
Pipe, inlet (Ref #5)
5
Part #17110-GFM-K01
Pipe, inlet (Ref #5)
5
Part #17110-GFM-K00
Изолятор (Ref #6)
6
Part #17112-GFM-B20
Insulator, in, pipe (Ref #7)
7
Part #17119-GFM-970
Band, insulator (Ref #8)
8
Part #17255-GFM-900
Sensor, oxygen (Ref #9)
9
Part #36532-GFM-901
Wire, oxygen sensor (Ref #10)
10
Part #36533-GFM-901
Sensor, water temp (Ref #11)
11
Part #37870-KTF-641
Bolt (5x20) (Ref #12)
12
Part #90005-MBW-000
Nut hex 7mm (Ref #13)
13
Part #90201-GCC-C50
Nut hex 7mm (Ref #13)
13
Part #90201-GCC-C50
Nut hex 7mm (Ref #13)
13
Part #90201-GCC-C50
Nut hex 7mm (Ref #13)
13
Part #90201-GCC-C50
Шайба (Ref #14)
14
Part #90401-GFM-900
Шайба (Ref #14)
14
Part #90401-GFM-900
Шайба (Ref #14)
14
Part #90401-GFM-900
Шайба (Ref #14)
14
Part #90401-GFM-900
Шайба (Ref #15)
15
Part #90454-GFM-900
Шайба (Ref #16)
16
Part #90482-GCC-C50
Прокладка (Ref #18)
18
Part #91308-GFM-900
Прокладка (Ref #18)
18
Part #91308-GFM-900
Прокладка (Ref #18)
18
Part #91308-GFM-900
Прокладка (Ref #18)
18
Part #91308-GFM-900
BOLT (Ref #19)
19
Part #92900-06012-0B
BOLT (Ref #19)
19
Part #92900-06012-0B
BOLT (Ref #19)
19
Part #92900-06012-0B
BOLT (Ref #19)
19
Part #92900-06012-0B
Болт заклепка (Ref #20)
20
Part #92900-06032-0E
Гайка (Ref #21)
21
Part #94050-06000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Spark plug (cr7eh9) (Ref #23)
23
Part #9805957916
Spark plug (cr8eh9) (Ref #23)
23
Part #98059-58916
Spark plug (cr9eh9) (Ref #23)
23
Part #98059-59916
