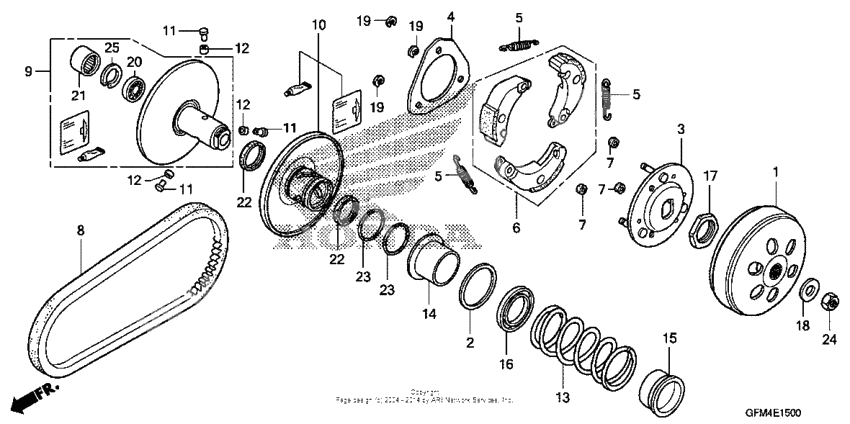

Driven face
Driven face
Clutch outer (Ref #1)
1
Part #22100-GFM-900
Seat, driven spring (Ref #2)
2
Part #22109-KGF-910
Plate, drive (Ref #3)
3
Part #22350-GFM-890
Plate, clutch side (Ref #4)
4
Part #22361-GFM-900
Weight set, clutch (Ref #6)
6
Part #22535-KVB-900
Belt, drive (Ref #8)
8
Part #23100-GFM-901
Face set, driven (Ref #9)
9
Part #23205-GFM-891
Face set (Ref #10)
10
Part #23224-GFM-901
Spring, driven face (Ref #13)
13
Part #23233-KVB-900
Collar, seal (Ref #14)
14
Part #23237-GFM-970
Collar, spring (Ref #15)
15
Part #23238-GFM-900
Cap, spring (Ref #16)
16
Part #23239-GFM-970
Nut, special (28mm) (Ref #17)
17
Part #90202-187-000
Шайба (Ref #18)
18
Part #90441-GFM-970
Bearing (6902u) (Ref #20)
20
Part #91002-GA7-701
Brg,needle 20x29x (Ref #21)
21
Part #91001-KCW-003
Seal,driven face, (Ref #22)
22
Part #91211-KN7-671
Seal,driven face, (Ref #22)
22
Part #91211-KN7-671
Seal,driven face, (Ref #22)
22
Part #91211-KN7-671
Seal,driven face, (Ref #22)
22
Part #91211-KN7-671
Прокладка (Ref #23)
23
Part #91384-KVB-900
Прокладка (Ref #23)
23
Part #91384-KVB-900
Прокладка (Ref #23)
23
Part #91384-KVB-900
Прокладка (Ref #23)
23
Part #91384-KVB-900
Nut, hex., 12mm (Ref #24)
24
Part #9403012200
Circlip (Ref #25)
25
Part #94520-28000
