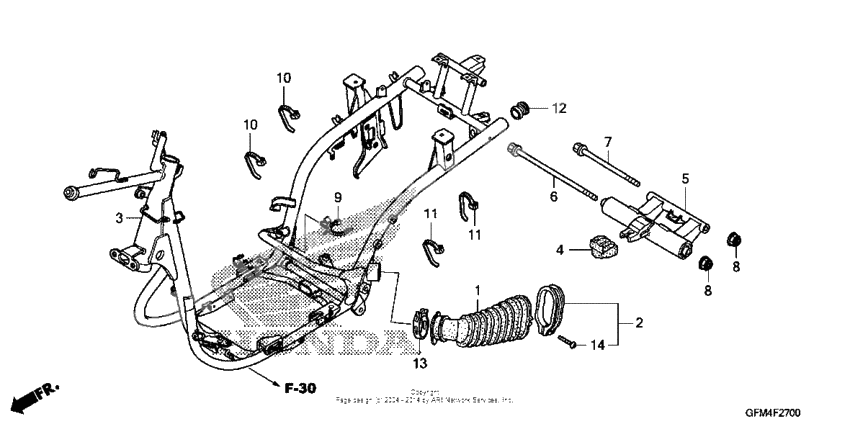

Frame
Frame
Duct, l, cover (Ref #1)
1
Part #11345-GFM-900
Band, l, cover duct (Ref #2)
2
Part #11346-GFM-970
Frame (Ref #3)
3
Part #50100-GFM-A00
Rubber, link stopper (Ref #4)
4
Part #50352-GFM-970
Link sub-assy, (Ref #5)
5
Part #50355-GFM-971
Bolt, flg (10x326) (Ref #6)
6
Part #90105-GFM-970
Bolt, flg (10x238) (Ref #7)
7
Part #90106-GCC-C50
Nut, u, 10mm (Ref #8)
8
Part #90304-GE8-003
Nut, u, 10mm (Ref #8)
8
Part #90304-GE8-003
Nut, u, 10mm (Ref #8)
8
Part #90304-GE8-003
Nut, u, 10mm (Ref #8)
8
Part #90304-GE8-003
Band, harness (Ref #9)
9
Part #90649-GFM-971
Band, wire (Ref #10)
10
Part #90651-GFM-971
Band, wire (Ref #10)
10
Part #90651-GFM-971
Band, wire (Ref #10)
10
Part #90651-GFM-971
Band, wire (Ref #10)
10
Part #90651-GFM-971
Band, suction hose (Ref #11)
11
Part #90679-GFM-971
Band, suction hose (Ref #11)
11
Part #90679-GFM-971
Band, suction hose (Ref #11)
11
Part #90679-GFM-971
Band, suction hose (Ref #11)
11
Part #90679-GFM-971
Plug, frame end (Ref #12)
12
Part #90862-GFM-900
Clamp, tube (d29) (Ref #13)
13
Part #91405-GFM-970
Screw, pan, 4x25 (Ref #14)
14
Part #93500-040250G
