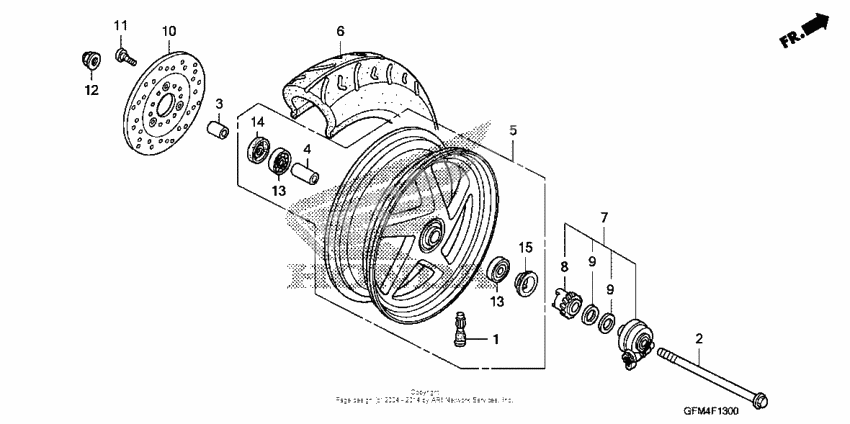

Front wheel
Front wheel
Valve, rim (Ref #1)
1
Part #42753-GFM-970
Axle, fr, wheel (Ref #2)
2
Part #44301-GFM-970
Collar, l, fr, (Ref #3)
3
Part #44311-GFM-970
Collar,fr axle di (Ref #4)
4
Part #44620-GW3-980
Wheel sub*nh295m* (Ref #5)
5
Part #44650-GFM-305ZA
Tire (90/90-12 44j) (Ref #6)
6
Part #44711-GFM-971
Box assy, *nh295m* (Ref #7)
7
Part #44800-GFM-B20ZA
Gear, speedometer (Ref #8)
8
Part #44806-GFM-B20
Шайба (Ref #9)
9
Part #44809-GFM-B20
Шайба (Ref #9)
9
Part #44809-GFM-B20
Шайба (Ref #9)
9
Part #44809-GFM-B20
Шайба (Ref #9)
9
Part #44809-GFM-B20
Disk,l fr brake (Ref #10)
10
Part #45351-GCC-B50
Bolt, fr. (8x24) (Ref #11)
11
Part #90105-KL8-741
Nut (12mm) (Ref #12)
12
Part #90306-KSB-900
Bearing (6201u) (Ref #13)
13
Part #90912-GC8-003
Bearing (6201u) (Ref #13)
13
Part #90912-GC8-003
Bearing (6201u) (Ref #13)
13
Part #90912-GC8-003
Bearing (6201u) (Ref #13)
13
Part #90912-GC8-003
B/brg,rad,n/com. (Ref #13)
13
Part #90912-GC8-005
B/brg,rad,n/com. (Ref #13)
13
Part #90912-GC8-005
B/brg,rad,n/com. (Ref #13)
13
Part #90912-GC8-005
B/brg,rad,n/com. (Ref #13)
13
Part #90912-GC8-005
Dust seal (35x20x7) (Ref #14)
14
Part #91257-HB3-003
Dust seal (35x20x7) (Ref #14)
14
Part #91257-GFM-900
Валик (Ref #15)
15
Part #91258-GFM-900
