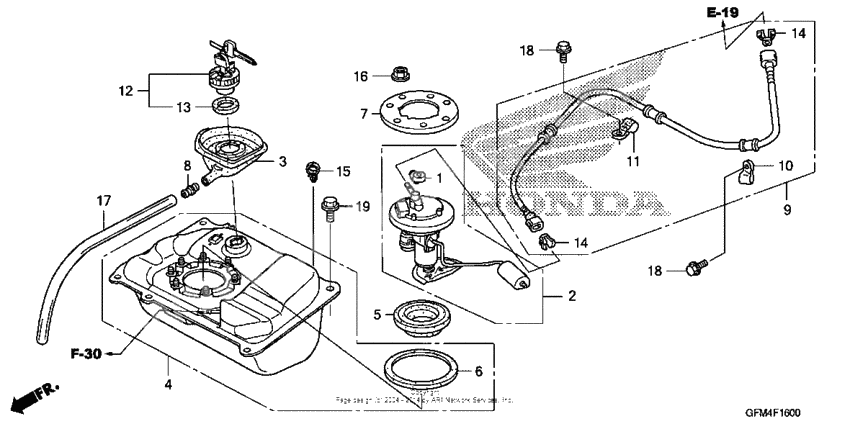

Fuel tank
Fuel tank
Damper b, connector (Ref #1)
1
Part #16719-GFM-970
Комплект насоса топливного (Ref #2)
2
Part #16800-GFM-K01
Tray, fuel (Ref #3)
3
Part #17505-GFM-970
Tank, fuel (Ref #4)
4
Part #17510-GFM-K00
Gasket a, fuel pump (Ref #5)
5
Part #17515-GEV-761
Seal, fuel tank (Ref #6)
6
Part #17516-GFM-970
PLATE (Ref #7)
7
Part #17517-GFM-970
Joint, fuel tube (Ref #8)
8
Part #17525-KBN-900
Hose, fuel feed (Ref #9)
9
Part #17528-GFM-K00
Clamp a (Ref #10)
10
Part #17568-GFM-K00
Хомут в топливопровод (Ref #11)
11
Part #17569-GFM-K00
Cap, fuel filler (Ref #12)
12
Part #17620-GFM-A01
Прокладка (Ref #13)
13
Part #17632-383-831
RETAINER (Ref #14)
14
Part #17711-S0X-A31
RETAINER (Ref #14)
14
Part #17711-S0X-A31
RETAINER (Ref #14)
14
Part #17711-S0X-A31
RETAINER (Ref #14)
14
Part #17711-S0X-A31
Clip, harness (Ref #15)
15
Part #90659-734-K51
Гайка (Ref #16)
16
Part #94050-06080
Bulk hose, vinyl (Ref #17)
17
Part #95003-230-0860M
BOLT (Ref #18)
18
Part #95701-060-120-8
BOLT (Ref #18)
18
Part #95701-060-120-8
BOLT (Ref #18)
18
Part #95701-060-120-8
BOLT (Ref #18)
18
Part #95701-060-120-8
BOLT (Ref #19)
19
Part #95701-080-160-8
