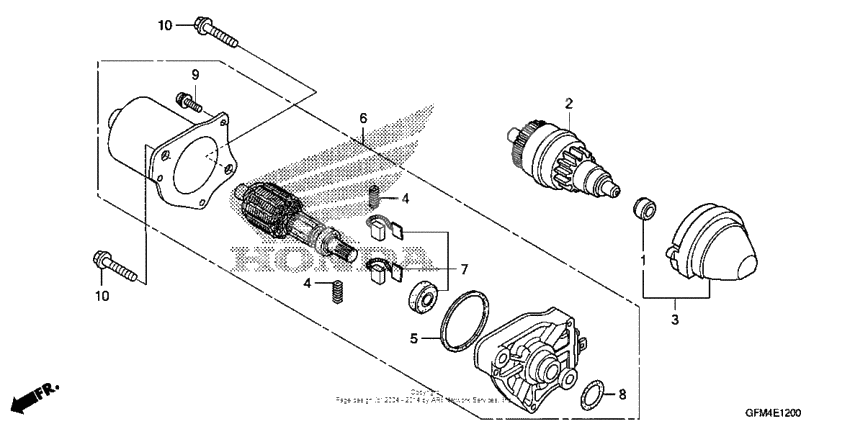

Starter motor
Starter motor
Втулка (Ref #1)
1
Part #11205-GW3-931
Pinion (14t/40t) (Ref #2)
2
Part #28120-GFC-771
Holder comp (Ref #3)
3
Part #28150-GGC-900
Spring, carbon brush (Ref #4)
4
Part #31204-KG8-004
Spring, carbon brush (Ref #4)
4
Part #31204-KG8-004
Spring, carbon brush (Ref #4)
4
Part #31204-KG8-004
Spring, carbon brush (Ref #4)
4
Part #31204-KG8-004
PACKING (Ref #5)
5
Part #31206-GW3-004
Motor unit,start (Ref #6)
6
Part #31210-GFM-972
Bracket comp. (Ref #7)
7
Part #31213-GFM-971
Кронштейн (Ref #7)
7
Part #31213-GFM-B20
O RING (Ref #8)
8
Part #91309-KEE-630
Screw-washer (Ref #9)
9
Part #93892-050-160-8
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
