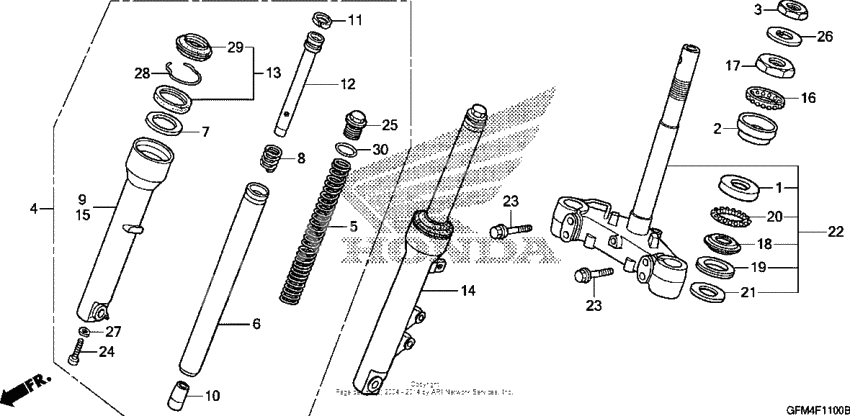

Steering stem + front fork
Steering stem + front fork
Race, steering ball (Ref #1)
1
Part #50302-GFM-960
Race,up strg ball (Ref #2)
2
Part #50301-KCW-870
Гайка (Ref #3)
3
Part #50306-GFM-970
Fork assy,, r, fr, (Ref #4)
4
Part #51400-GFM-305
Spring, fr, fork (Ref #5)
5
Part #51401-GFM-971
Pipe, fr. fork (Ref #6)
6
Part #51410-GCC-C51
Ring, back-up (Ref #7)
7
Part #51412-KK4-003
Spring,fr.rebound (Ref #8)
8
Part #51412-369-000
Case, r, fr, (lower) (Ref #9)
9
Part #51420-GFM-971
Piece, oil lock (Ref #10)
10
Part #51432-GCC-C51
RING,PISTON (Ref #11)
11
Part #51437-413-003
Pipe, seat (Ref #12)
12
Part #51440-GFM-971
Seal set, fr. fork (Ref #13)
13
Part #51490-GAA-305
Fork assy,, l, fr, (Ref #14)
14
Part #51500-GFM-305
Case, l, fr, (lower) (Ref #15)
15
Part #51520-GFM-971
Ball, steering steel (Ref #16)
16
Part #53210-GFM-970
Race,strg top con (Ref #17)
17
Part #53211-KCW-870
Race, steering cone (Ref #18)
18
Part #53212-GFM-970
DUST SEAL (Ref #19)
19
Part #53214-GFM-970
Ball, steering steel (Ref #20)
20
Part #53215-GFM-970
Шайба (Ref #21)
21
Part #53216-GFM-970
Stem sub-assy,, strg (Ref #22)
22
Part #53219-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Bolt, socket (8mm) (Ref #24)
24
Part #90116-383-721
Bolt a, fr, fork (Ref #25)
25
Part #90123-GFM-971
Washer, lock nut (Ref #26)
26
Part #90506-GFM-970
Прокладка (Ref #27)
27
Part #90544-439-930
Ring, oil seal stop (Ref #28)
28
Part #90601-354-000
DUST SEAL (Ref #29)
29
Part #91254-GAA-003
Прокладка (Ref #30)
30
Part #91356-169-003
