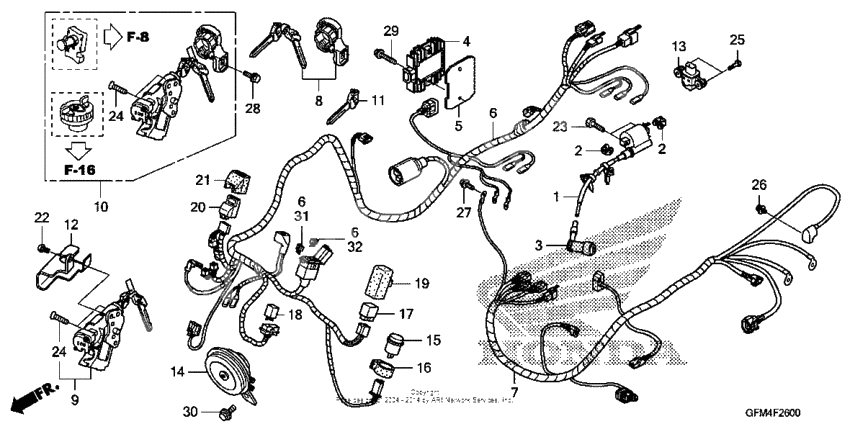

Wire harness
Wire harness
Катушка зажигания (Ref #1)
1
Part #30510-GFM-901
Кольцо/шайба (Ref #2)
2
Part #30520-GFM-900
Кольцо/шайба (Ref #2)
2
Part #30520-GFM-900
Кольцо/шайба (Ref #2)
2
Part #30520-GFM-900
Кольцо/шайба (Ref #2)
2
Part #30520-GFM-900
Cap assy (Ref #3)
3
Part #30700-GFM-891
Rectifier, regulate (Ref #4)
4
Part #31600-GFM-890
Plate, regulator (Ref #5)
5
Part #31601-GFM-970
Sub-harness, engine (Ref #7)
7
Part #32101-GFM-K00
Shutter set, key (Ref #8)
8
Part #35011-GFM-B10
Switch assy. set (Ref #9)
9
Part #35012-GFM-B11
Key & screw set (Ref #10)
10
Part #35014-GFM-A01
Ключ (Ref #11)
11
Part #35121-GFM-B10
PROTECTOR (Ref #12)
12
Part #35125-GFM-960
Sensor, bank angle (Ref #13)
13
Part #35160-GFM-K01
Звуковой сигнал (Ref #14)
14
Part #38110-MBB-000
Relay (Ref #15)
15
Part #38301-KVJ-840
Suspension (Ref #16)
16
Part #38306-292-000
Relay c0mp start (Ref #17)
17
Part #38501-GFM-901
Relay (micro iso 4p) (Ref #18)
18
Part #38502-GFM-890
Suspension (Ref #19)
19
Part #38506-GFM-890
Pgm-fi unit (Ref #20)
20
Part #38770-GFM-A01
Suspension (Ref #21)
21
Part #38771-GFM-900
Bolt, one-way (6x10) (Ref #22)
22
Part #90103-GFM-960
Болт (Ref #23)
23
Part #90106-GFM-900
Screw, flat (6x22) (Ref #24)
24
Part #90164-GEE-003
Screw, flat (6x22) (Ref #24)
24
Part #90164-GEE-003
Screw, flat (6x22) (Ref #24)
24
Part #90164-GEE-003
Screw, flat (6x22) (Ref #24)
24
Part #90164-GEE-003
Screw, flat (6x22) (Ref #24)
24
Part #90164-GFC-890
Screw, flat (6x22) (Ref #24)
24
Part #90164-GFC-890
Screw, flat (6x22) (Ref #24)
24
Part #90164-GFC-890
Screw, flat (6x22) (Ref #24)
24
Part #90164-GFC-890
Болт (Ref #25)
25
Part #93500-040-200-H
Screw-washer (Ref #26)
26
Part #93892-040-060-8
BOLT (Ref #27)
27
Part #95701-060-160-0
BOLT (Ref #28)
28
Part #95701-060-160-8
Bolt, flange, 6x28 (Ref #29)
29
Part #95701-0602800
Bolt, flange, 8x12 (Ref #30)
30
Part #95701-0801200
Fuse (Ref #31)
31
Part #98200-41000
Fuse (Ref #32)
32
Part #98200-42000
