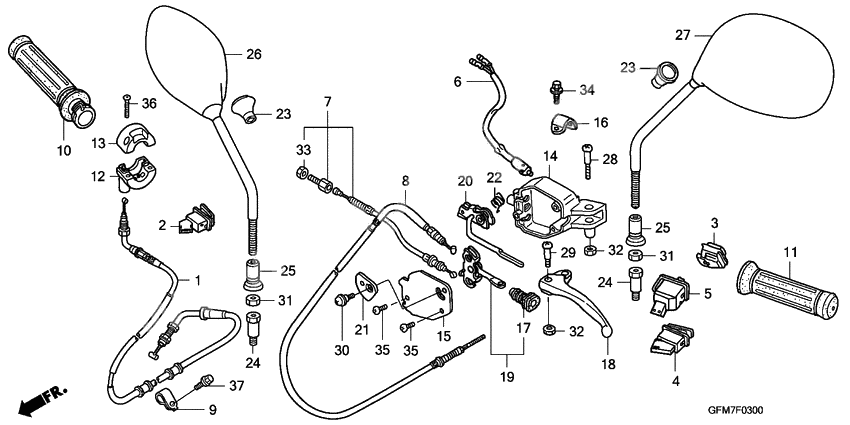

Handle lever/switch/cable
Handle lever/switch/cable
Cable, throttle (Ref #1)
1
Part #17910-GFM-971
Switch unit, starter (Ref #2)
2
Part #35160-GFM-971
Switch unit, dimmer (Ref #3)
3
Part #35170-GFM-B20
Switch unit, horn (Ref #4)
4
Part #35180-GFM-971
Switch unit (Ref #5)
5
Part #35200-GFM-B10
Sw.assy,fr stop (Ref #6)
6
Part #35340-KCW-870
Cable comp (Ref #7)
7
Part #43440-GFM-970
Cable comp (Ref #8)
8
Part #43450-GFM-970
CLAMP (Ref #9)
9
Part #50180-GFM-970
Зажим дросселя (Ref #10)
10
Part #53140-GFM-970
Grip (Ref #11)
11
Part #53166-GFM-970
Housing, throttle (Ref #12)
12
Part #53167-GFM-970
Housing, throttle (Ref #13)
13
Part #53168-GFM-970
Brkt, l, brake lever (Ref #14)
14
Part #53172-GFM-900
Cover, l (Ref #15)
15
Part #53173-GFM-900
Band, handle bracket (Ref #16)
16
Part #53173-GFM-970
Ботинок (Ref #17)
17
Part #53176-GBL-870
Lever (Ref #18)
18
Part #53178-GFM-900
Equalizer assy (Ref #19)
19
Part #53180-GFM-900
Arm comp (Ref #20)
20
Part #53185-GFM-900
Крышка (Ref #21)
21
Part #53186-GBL-870
Пружина (Ref #22)
22
Part #53188-GBL-870
Boot, mirror (Ref #23)
23
Part #88113-GCC-J80
Boot, mirror (Ref #23)
23
Part #88113-GCC-J80
Boot, mirror (Ref #23)
23
Part #88113-GCC-J80
Boot, mirror (Ref #23)
23
Part #88113-GCC-J80
Bolt, adapter (8mm) (Ref #24)
24
Part #88115-GFC-B50
Bolt, adapter (8mm) (Ref #24)
24
Part #88115-GFC-B50
Bolt, adapter (8mm) (Ref #24)
24
Part #88115-GFC-B50
Bolt, adapter (8mm) (Ref #24)
24
Part #88115-GFC-B50
Cap, lock nut (Ref #25)
25
Part #88119-GCC-J80
Cap, lock nut (Ref #25)
25
Part #88119-GCC-J80
Cap, lock nut (Ref #25)
25
Part #88119-GCC-J80
Cap, lock nut (Ref #25)
25
Part #88119-GCC-J80
Mirror comp (Ref #26)
26
Part #88210-GFM-B20
Mirror comp (Ref #27)
27
Part #88220-GFM-B20
Болт (Ref #28)
28
Part #90115-GFM-900
Болт (Ref #29)
29
Part #90116-GFM-900
Screw, pan (5x13) (Ref #30)
30
Part #90118-GFM-900
Nut, lock (Ref #31)
31
Part #90301-GFC-B50
Nut, lock (Ref #31)
31
Part #90301-GFC-B50
Nut, lock (Ref #31)
31
Part #90301-GFC-B50
Nut, lock (Ref #31)
31
Part #90301-GFC-B50
Nut, hex., 5mm (Ref #32)
32
Part #90302-435-761
Nut, hex., 5mm (Ref #32)
32
Part #90302-435-761
Nut, hex., 5mm (Ref #32)
32
Part #90302-435-761
Nut, hex., 5mm (Ref #32)
32
Part #90302-435-761
Nut, hex, (8mm) (Ref #33)
33
Part #90303-GFC-890
Bolt-washer (Ref #34)
34
Part #93401-060-200-0
Болт (Ref #35)
35
Part #93500-050-120-H
Болт (Ref #35)
35
Part #93500-050-120-H
Болт (Ref #35)
35
Part #93500-050-120-H
Болт (Ref #35)
35
Part #93500-050-120-H
Screw, pan, 5x22 (Ref #36)
36
Part #93500-050220A
BOLT (Ref #37)
37
Part #95701-060-120-8
