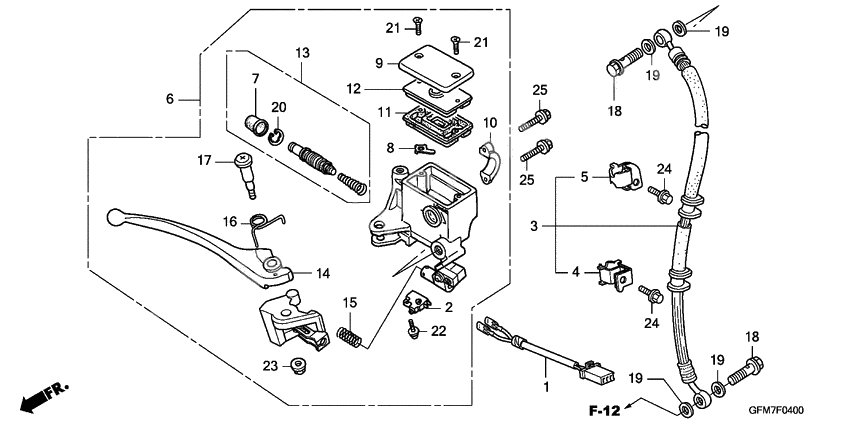

Fr. brake master cylinder
Fr. brake master cylinder
Sub-wire, fr, (Ref #1)
1
Part #32102-GFM-890
Sw.assy,fr stop (Ref #2)
2
Part #35340-GW3-980
Hose comp. (Ref #3)
3
Part #45125-GFM-B20
Clamp a, brake hose (Ref #4)
4
Part #45127-GFM-900
Clamp b, brake hose (Ref #5)
5
Part #45128-GFM-970
Cylinder assy. (Ref #6)
6
Part #45500-GFM-B12
Ботинок (Ref #7)
7
Part #45504-410-003
PROTECTOR (Ref #8)
8
Part #45512-GW3-980
Cap,oil cup (Ref #9)
9
Part #45513-GW3-980
Holder,m/c (Ref #10)
10
Part #45517-KCW-880
DIAPHRAGM (Ref #11)
11
Part #45520-MG7-006
Пластина (Ref #12)
12
Part #45521-HA2-006
Набор цилиндров (Ref #13)
13
Part #45530-KET-920
Lever (Ref #14)
14
Part #53175-GFM-B20
Spring, return (Ref #15)
15
Part #53198-GBL-870
Пружина (Ref #16)
16
Part #53199-GCS-010
Bolt,handle lever (Ref #17)
17
Part #90114-GCC-B50
BOLT (Ref #18)
18
Part #90145-GFM-970
BOLT (Ref #18)
18
Part #90145-GFM-970
BOLT (Ref #18)
18
Part #90145-GFM-970
BOLT (Ref #18)
18
Part #90145-GFM-970
Circlip (Ref #20)
20
Part #90651-MA5-671
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Screw-washer (Ref #22)
22
Part #93893-040-120-7
Гайка (Ref #23)
23
Part #94050-06000
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
