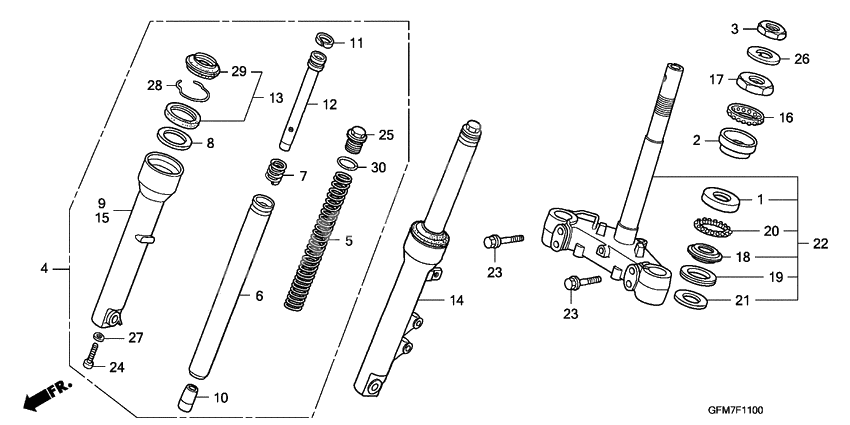

Steering stem/front fork
Steering stem/front fork
Race, steering ball (Ref #1)
1
Part #50302-GFM-960
Race,up strg ball (Ref #2)
2
Part #50301-KCW-870
Гайка (Ref #3)
3
Part #50306-GFM-970
Вилка включения передачи (Ref #4)
4
Part #51400-GFM-B20
Пружина (Ref #5)
5
Part #51401-GFM-B20
Pipe comp,fr fork (Ref #6)
6
Part #51410-GCC-B50
Spring,front rebo (Ref #7)
7
Part #51412-GCC-000
Ring,back up (Ref #8)
8
Part #51412-KEJ-900
Case comp. (Ref #9)
9
Part #51420-GFM-B20
PIECE,OIL LOCK (Ref #10)
10
Part #51432-GCC-B50
RING,PISTON (Ref #11)
11
Part #51437-GCC-000
Pipe (Ref #12)
12
Part #51440-GFM-B20
SEAL SET,FR FORK (Ref #13)
13
Part #51490-KEJ-900
Вилка включения передачи (Ref #14)
14
Part #51500-GFM-B20
Case comp. (Ref #15)
15
Part #51520-GFM-B20
Ball, steering steel (Ref #16)
16
Part #53210-GFM-970
Race,strg top con (Ref #17)
17
Part #53211-KCW-870
Race, steering cone (Ref #18)
18
Part #53212-GFM-970
DUST SEAL (Ref #19)
19
Part #53214-250-000
Ball assy,strg (Ref #20)
20
Part #53215-KCW-870
Washer,steering h (Ref #21)
21
Part #53216-KCW-870
Stem sub assy. (Ref #22)
22
Part #53219-GFM-B20
Болт (Ref #23)
23
Part #90102-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Болт (Ref #23)
23
Part #90102-GFM-970
Bolt,socket 8mm (Ref #24)
24
Part #90116-KCS-690
BOLT (Ref #25)
25
Part #90123-GFM-B20
Washer, lock nut (Ref #26)
26
Part #90506-GFM-970
PACKING (Ref #27)
27
Part #90544-GCC-000
Clip,sw cover (Ref #28)
28
Part #90601-GCC-000
Уплотнение (Ref #29)
29
Part #91254-KEJ-900
Прокладка (Ref #30)
30
Part #91356-GCC-000
-
250303-GFM-970
Race, steering ball
1Replaced by 50301-KCW-870 Доступно: Нет в наличии
