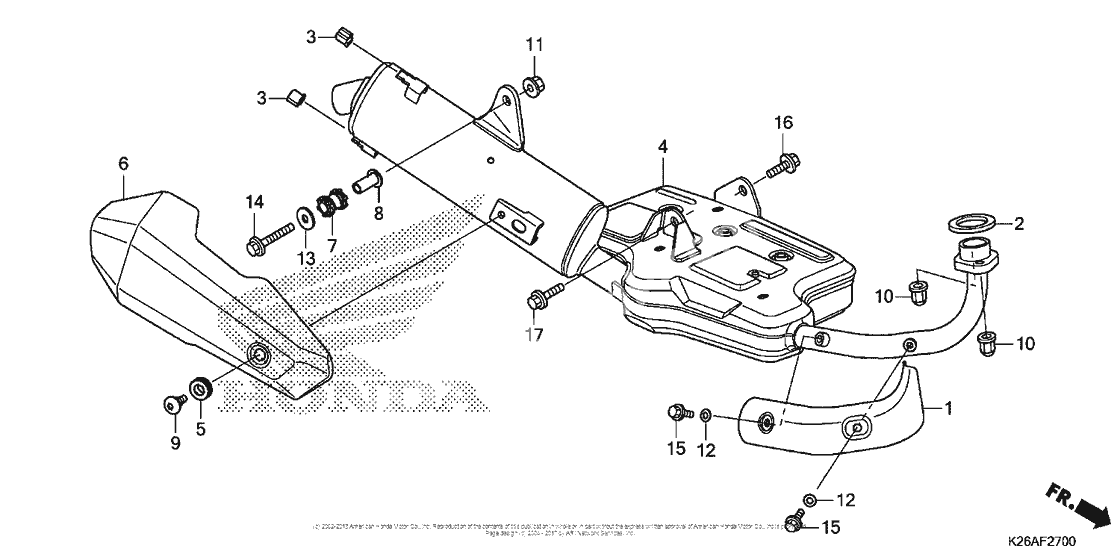

Выхлопная система
Выхлопная система
Cover, ex. pipe (Ref #1)
1
Part #18240-K26-306
Gasket,ex.pipe (Ref #2)
2
Part #18291-GE2-920
RUBBER (Ref #3)
3
Part #18293-MCA-A20
Muffler, ex. (Ref #4)
4
Part #18300-K26-306
RUBBER (Ref #5)
5
Part #18345-MBT-610
COVER, MUFFLER (Ref #6)
6
Part #18355-K26-B00
Rubber, muff mt (Ref #7)
7
Part #18421-K26-B00
Collar, muff mt (Ref #8)
8
Part #18422-K26-900
Screw, pan (6x12) (Ref #9)
9
Part #90113-KTA-920
Nut,hex cap 8mm (Ref #10)
10
Part #90304-KPH-700
Гайка (Ref #11)
11
Part #94050-08000
Washer, plain, 6mm (Ref #12)
12
Part #9410106200
Washer, plain, 8mm (Ref #13)
13
Part #9410308200
Bolt, flange, 8x45 (Ref #14)
14
Part #95701-0804502
Болт (Ref #15)
15
Part #96001-0600802
Болт (Ref #16)
16
Part #96300-080-160-4
Болт (Ref #17)
17
Part #96300-080-250-4
-
-
