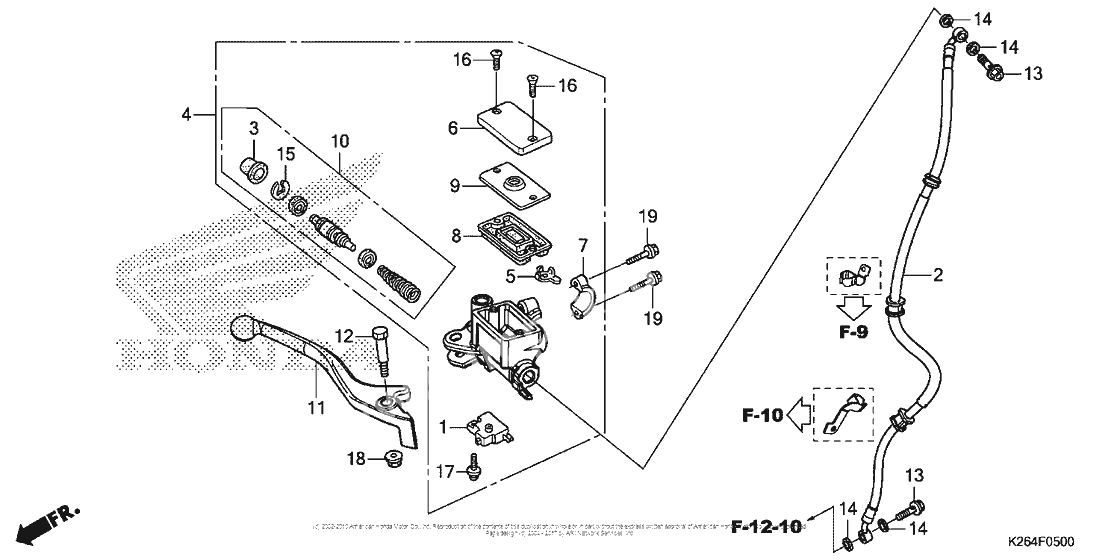

Передний тормозной цилиндр
Передний тормозной цилиндр
Switch, fr. stop (Ref #1)
1
Part #35340-MGS-D31
Hose, fr. brake (Ref #2)
2
Part #45125-K26-921
Ботинок (Ref #3)
3
Part #45504-410-003
Master cylinder sub-assy., fr. brake (coo) (Ref #4)
4
Part #45510-K26-305
PROTECTOR (Ref #5)
5
Part #45512-MA6-006
Cap, master cylinder (Ref #6)
6
Part #45513-HA2-006
HOLDER (Ref #7)
7
Part #45517-166-006
DIAPHRAGM (Ref #8)
8
Part #45520-MG7-006
Пластина (Ref #9)
9
Part #45521-K21-901
Master cylinder set (Ref #10)
10
Part #45530-471-831
Lever, r. handlebar (Ref #11)
11
Part #53175-K26-305
Bolt,handle,lever (Ref #12)
12
Part #90114-KGH-900
Bolt, oil (10x22) (Ref #13)
13
Part #90145-MS9-612
Шайба (Ref #14)
14
Part #90545-300-000
Circlip (Ref #15)
15
Part #90651-MA5-671
Болт (Ref #16)
16
Part #93600-040120G
Screw-washer (Ref #17)
17
Part #93893-040-120-7
Гайка (Ref #18)
18
Part #94050-06000
Болт (Ref #19)
19
Part #96001-0602207
