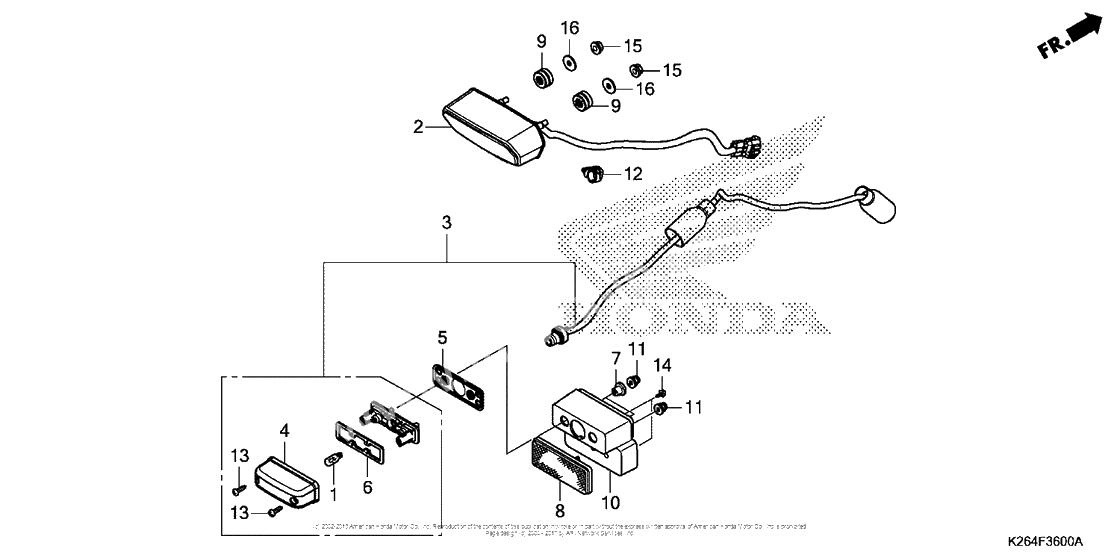

Задний фонарь (Стоп-сигнал)
Задний фонарь (Стоп-сигнал)
Bulb (12v 5w) (Ref #1)
1
Part #33301-K07-901
Taillight unit (coo) (Ref #2)
2
Part #33701-K26-305
Light assy., license (coo) (Ref #3)
3
Part #33720-K26-305
Cover, license (coo) (Ref #4)
4
Part #33722-K26-305
Rub, license light (Ref #5)
5
Part #33728-KPP-T00
Прокладка (Ref #6)
6
Part #33729-MCZ-003
COLLAR (Ref #7)
7
Part #33731-MJ0-940
REFLECTOR REFLEX (Ref #8)
8
Part #33741-KPL-902
RUBBER (Ref #9)
9
Part #77209-K26-900
Brkt, license light (Ref #10)
10
Part #80201-KYJ-920
Nut,u,5mm (Ref #11)
11
Part #90301-KWN-901
CLIP (Ref #12)
12
Part #90683-SA0-003
Болт (Ref #13)
13
Part #93901-24480
Болт (Ref #14)
14
Part #93903-44380
Гайка (Ref #15)
15
Part #94050-06000
Шайба (Ref #16)
16
Part #94103-06000
