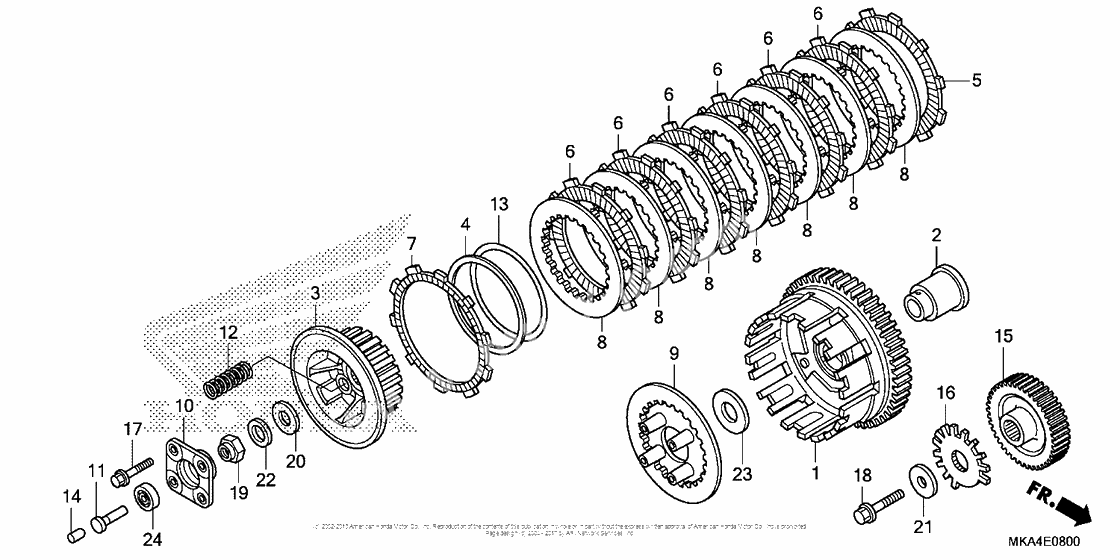

Clutch (1)
Clutch (1)
Корзина сцепления (Ref #1)
1
Part #22100-MGS-D30
Guide, clutch (Ref #2)
2
Part #22116-MGS-D30
Center, clutch (24t) (Ref #3)
3
Part #22120-MKA-D30
Seat, judder spring (Ref #4)
4
Part #22125-MJL-D30
Диск сцепления фрикционный (Ref #5)
5
Part #22201-MAV-000
ДИСК СЦЕПЛЕНИЯ (Ref #6)
6
Part #22201-MEW-920
Disk b, cl friction (Ref #7)
7
Part #22202-MAE-000
Plate, clutch (Ref #8)
8
Part #22321-MJH-Y00
Plate, clu press (Ref #9)
9
Part #22350-MS6-922
Plate, clutch lifter (Ref #10)
10
Part #22361-MR1-000
ROD (Ref #11)
11
Part #22366-MFF-D00
Spring, clutch (Ref #12)
12
Part #22401-MJL-D30
Spring, judder (Ref #13)
13
Part #22402-MJL-D30
ROD (Ref #14)
14
Part #22847-MFF-D00
Gear (41t) (Ref #15)
15
Part #23103-MGS-D30
Rotor, pulse (Ref #16)
16
Part #30291-MGS-D30
Болт (Ref #17)
17
Part #90007-MJH-Y01
Болт (Ref #18)
18
Part #90023-MBW-000
Nut, lock (18mm) (Ref #19)
19
Part #90236-HA0-000
Шайба (Ref #20)
20
Part #90401-MZ8-B40
Шайба (Ref #21)
21
Part #90414-MGE-D00
Шайба, стопорная (Ref #22)
22
Part #90432-428-000
Шайба (Ref #23)
23
Part #90452-471-000
Bearing, radial ball, 6001 (Ref #24)
24
Part #96100-6001000
