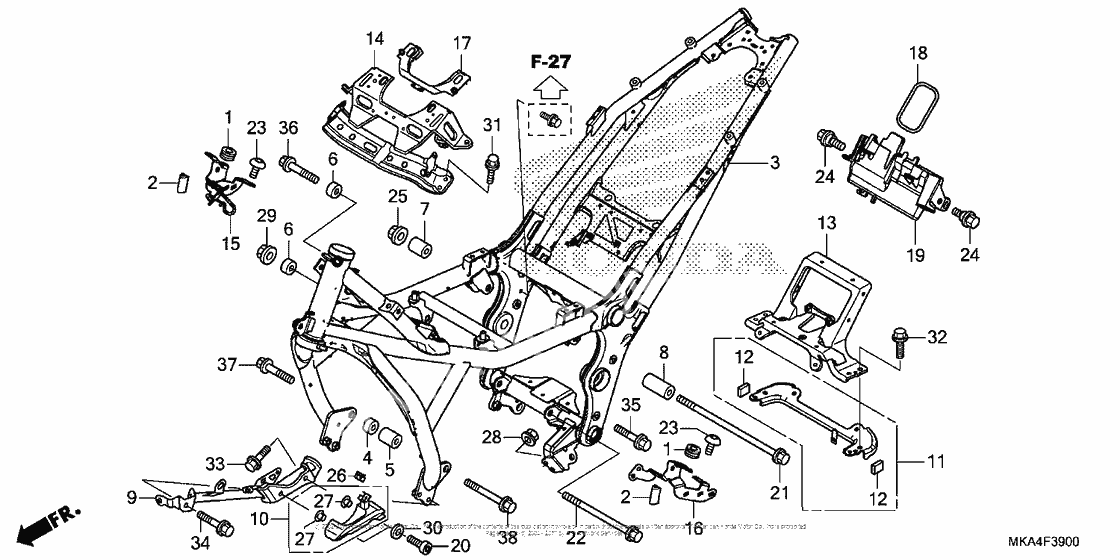

Рама
Рама
RUBBER (Ref #1)
1
Part #17245-107-010
Trim *nh1* (Ref #2)
2
Part #17516-KCZ-000ZB
Frame *nh303m* (Ref #3)
3
Part #50100-MKA-D80ZA
Collar a, r. eng hgr (Ref #4)
4
Part #50191-MGS-D10
Collar a, l. eng hgr (Ref #5)
5
Part #50192-MGS-D10
Collar b, eng hgr (Ref #6)
6
Part #50193-MGS-D10
Collar c, r. eng hgr (Ref #7)
7
Part #50194-MGS-D10
Collar c, l. eng hgr (Ref #8)
8
Part #50195-MGS-D10
Stay set, fr. tank (Ref #11)
11
Part #50230-MJL-D30
Rubber, cross plate (Ref #12)
12
Part #50233-MGS-D30
Plate, center cross (Ref #13)
13
Part #50234-MGS-D30
Plate b, cross (Ref #14)
14
Part #50236-MGS-D30
Stay, r. air cleaner housing (Ref #15)
15
Part #50237-MJL-D30
Stay, l. air cleaner housing (Ref #16)
16
Part #50238-MJL-D30
Rubber, cross plate (Ref #17)
17
Part #50239-MGS-D30
Комплект (Ref #18)
18
Part #80123-GN5-900
Box (Ref #19)
19
Part #81230-MKA-D80
Bolt, flg (12x276) (Ref #21)
21
Part #90103-MGS-D30
Bolt, flg (12x168) (Ref #22)
22
Part #90104-MGS-D30
Screw, pan (6x12) (Ref #23)
23
Part #90106-KSE-000
BOLT (Ref #24)
24
Part #90111-162-000
Nut flange 12mm (Ref #25)
25
Part #90364-MEJ-000
Nut, flange, 12mm (Ref #29)
29
Part #9405012000
BOLT (Ref #31)
31
Part #95701-060-120-8
BOLT (Ref #32)
32
Part #95701-060-220-8
BOLT (Ref #35)
35
Part #95701-120-350-8
BOLT (Ref #36)
36
Part #95701-120-450-8
BOLT (Ref #37)
37
Part #95701-120-550-8
BOLT (Ref #38)
38
Part #95701-120-800-8
