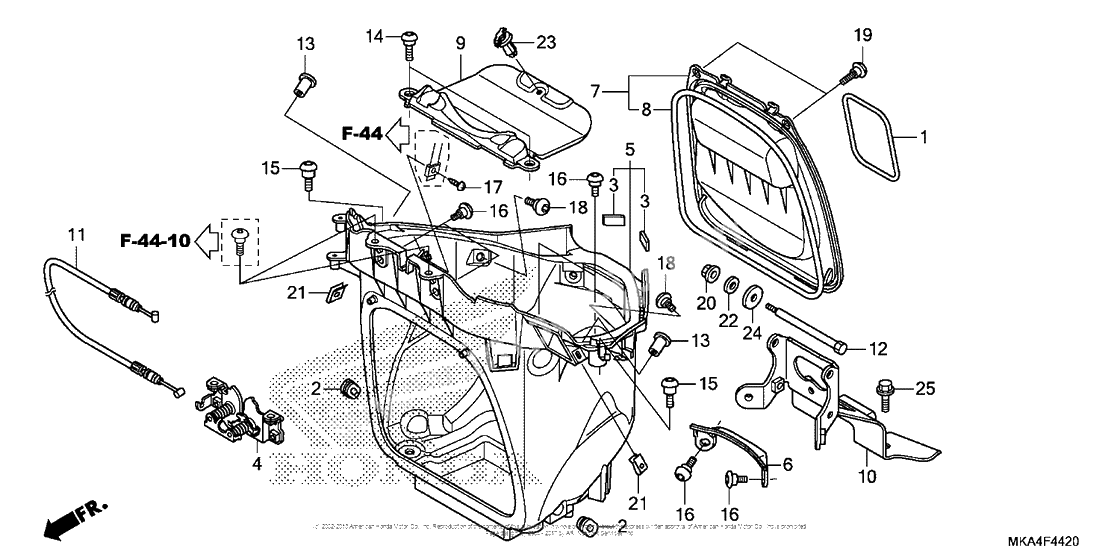

Ящик для багажа
Ящик для багажа
Band, u-lock (Ref #1)
1
Part #50290-MZ7-000
Grommet, speaker panel (Ref #2)
2
Part #64266-MG9-770
Seal, luggage tray (Ref #3)
3
Part #81304-MGS-D30
Catch, lid (Ref #4)
4
Part #81310-MGS-D31
Box assy., luggage (Ref #5)
5
Part #81320-MGS-D30
Tray, luggage box (Ref #6)
6
Part #81330-MGS-D30
Lid, maintenance (Ref #7)
7
Part #81340-MGS-D30
Seal (Ref #8)
8
Part #81351-MGS-D30
Груз (Ref #9)
9
Part #81360-MGS-D30
Bracket, hinge (Ref #10)
10
Part #82122-MGS-D30
Cable, lid open (Ref #11)
11
Part #82140-MGS-D31
Bolt, hinge (Ref #12)
12
Part #90109-MGS-D30
Гайка (Ref #13)
13
Part #90111-KW3-003
Screw (6x16) (Ref #14)
14
Part #90114-MFL-000
Screw, pan (6x16) (Ref #15)
15
Part #90117-MGS-D30
Screw (6x14) (Ref #16)
16
Part #90118-MJK-N20
Screw, tap (4x12) (Ref #17)
17
Part #90120-MJK-N20
Screw (5x11) (Ref #18)
18
Part #90122-MJK-N20
Screw, pan (5x15) (Ref #19)
19
Part #90150-MBG-000
Nut, u (6mm) (Ref #20)
20
Part #90301-MG3-000
Nut, spring, 5mm (Ref #21)
21
Part #90320-GC3-000
Шайба (Ref #22)
22
Part #90403-MFA-D00
Клипса крепления бампера (Ref #23)
23
Part #90683-GAZ-003
Шайба (Ref #24)
24
Part #94102-08700
BOLT (Ref #25)
25
Part #95701-060-160-0
