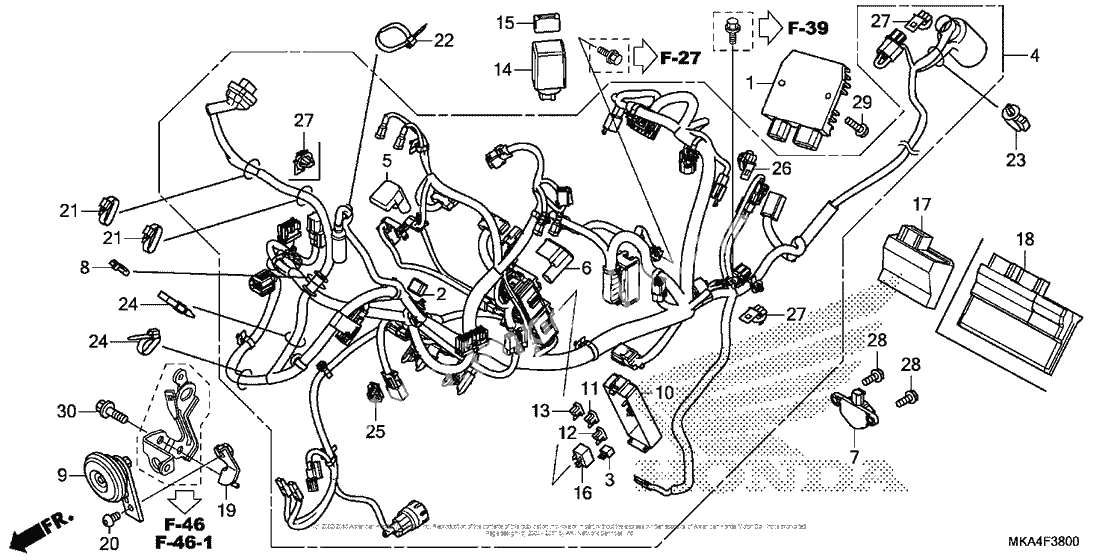

Электрооборудование
Электрооборудование
Rectifier, regulator (Ref #1)
1
Part #31600-MJJ-D31
Rectifier comp., silicon (Ref #2)
2
Part #31700-MM8-610
Diode assy., three way (sumitomo) (Ref #3)
3
Part #31730-MAS-601
Wire harness (Ref #4)
4
Part #32100-MKA-G30
Датчик (Ref #7)
7
Part #35160-MGS-D31
Band (black 3.5x140) (Ref #8)
8
Part #35701-MG9-950
Horn (Ref #9)
9
Part #38110-MEE-013
Cover, power box (Ref #10)
10
Part #38201-MGS-D31
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #11)
11
Part #38221-SNA-A31
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #12)
12
Part #38221-SNA-A51
New Genuine Part (Ref #14)
14
Part #38301-MJE-D01
Suspension, winker relay (mitsuba) (Ref #15)
15
Part #38306-KK4-000
Relay (micro iso 4p) (Ref #16)
16
Part #38501-MEL-003
Pgm-fi unit (Ref #17)
17
Part #38770-MKA-G32
Опора/стойка horn (Ref #19)
19
Part #50311-MGS-D31
Bolt, socket (8x16) (Ref #20)
20
Part #90128-MGS-D30
BAND (Ref #21)
21
Part #90650-KV6-003
Band, wire, 165mm (black) (Ref #22)
22
Part #90651-KV6-003
CLAMP (Ref #23)
23
Part #90652-HC4-003
Band, wire (black) (Ref #24)
24
Part #90652-KT1-771
CLIP (Ref #25)
25
Part #91534-SWA-003
CLIP (Ref #26)
26
Part #91535-TA0-003
CLIP (Ref #27)
27
Part #91565-SEL-003
BOLT (Ref #28)
28
Part #95701-060-160-0
Bolt, flange, 6x22 (Ref #29)
29
Part #95701-0602200
Bolt,flange 8x25 (Ref #30)
30
Part #95701-080-250-8
