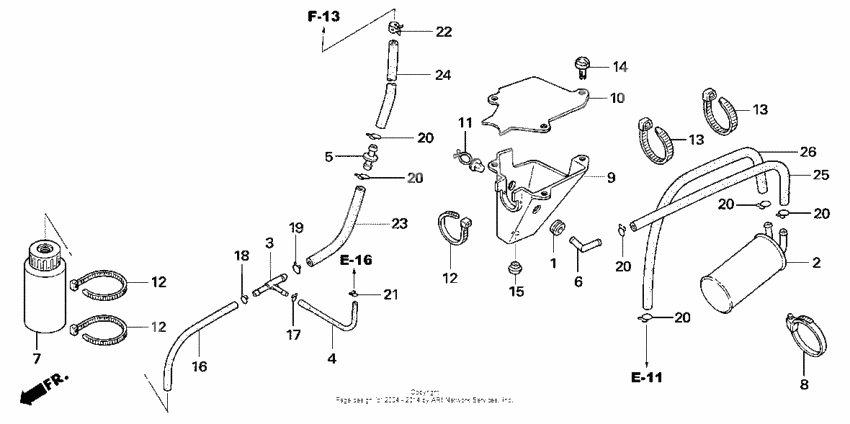

Air box + oil catch tank
Air box + oil catch tank
Grommet, carb box (Ref #1)
1
Part #17232-NX2-000
Tank, oil catch (Ref #2)
2
Part #17511-NX2-000
Joint three-way (Ref #3)
3
Part #17711-GM6-000
Tube (3.5x4.5x150) (Ref #4)
4
Part #17712-NX2-000
Joint, tube (Ref #5)
5
Part #19102-KT8-000
Joint, tube (Ref #6)
6
Part #19103-MB9-000
Tank, catch (250) (Ref #7)
7
Part #19602-NX2-000
Band, sub-tank (Ref #8)
8
Part #50252-MN1-670
Box, air (Ref #9)
9
Part #64110-NX2-000
Cover, air box (Ref #10)
10
Part #64115-NX2-000
Струбцина проводки (Ref #11)
11
Part #90119-HA7-670
Band, wire (black) (Ref #13)
13
Part #90652-KT1-771
Band, wire (black) (Ref #13)
13
Part #90652-KT1-771
Band, wire (black) (Ref #13)
13
Part #90652-KT1-771
Band, wire (black) (Ref #13)
13
Part #90652-KT1-771
Клипса крепления бампера (Ref #14)
14
Part #90683-GAZ-003
PLUG (Ref #15)
15
Part #90851-SD2-000
Bulk hose (5.5x3000) (Ref #16)
16
Part #95001-550-0360M
CLIP (Ref #17)
17
Part #95002-02070
CLIP (Ref #18)
18
Part #95002-02100
CLIP (Ref #19)
19
Part #95002-02120
Clip, tube (b6.5) (Ref #21)
21
Part #9500202650
CLAMP (Ref #22)
22
Part #95002-412-500-8
Bulk hose (8x1000) (Ref #23)
23
Part #95005-800-0150M
Bulk hose (8x8000) (Ref #25)
25
Part #95005-800-0810M
-
-
