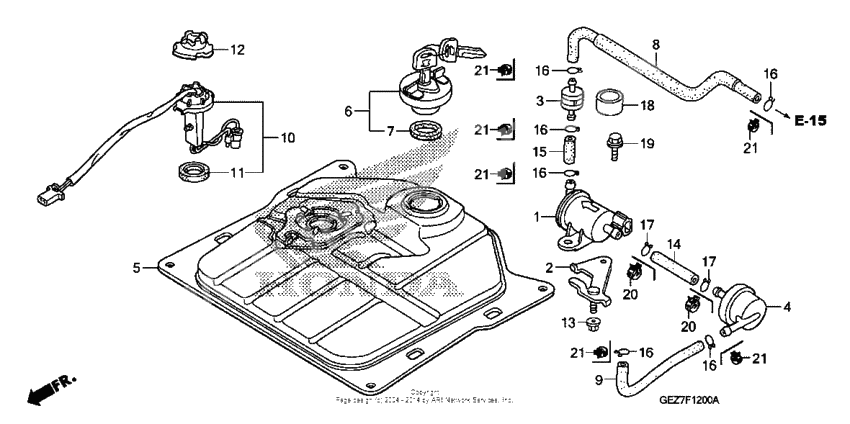

Fuel tank
Fuel tank
Pump assy., fuel (Ref #1)
1
Part #16710-GET-013
Stay, fuel pump (Ref #2)
2
Part #16715-GET-000
Клапан (Ref #3)
3
Part #16800-GET-831
Strainer, fuel (Ref #4)
4
Part #16900-GET-003
Tank, fuel (Ref #5)
5
Part #17500-GET-010
Cap, fuel filler (Ref #6)
6
Part #17620-GEV-761
Прокладка (Ref #7)
7
Part #17632-383-831
Tube, fuel (4.5x390) (Ref #8)
8
Part #17682-GGA-670
Tube a, fuel (Ref #9)
9
Part #17683-GET-A60
Sensor unit (Ref #10)
10
Part #37080-GEZ-610
Packing, base (Ref #11)
11
Part #37801-GA7-700
Retainer, fuel unit (Ref #12)
12
Part #37802-GA7-700
Гайка (Ref #13)
13
Part #94050-06000
Tube, fuel (5.5x55) (Ref #14)
14
Part #17684-GGA-670
Tube, fuel (4.5x45) (Ref #15)
15
Part #17681-GET-A60
Tube (17x23x13) (Ref #18)
18
Part #17686-GET-A60
BOLT (Ref #19)
19
Part #95701-060-120-0
Clamp, tube (d10.0) (Ref #20)
20
Part #90651-KPS-A11
Clamp, tube (d10.0) (Ref #20)
20
Part #90651-KPS-A11
Clamp, tube (d10.0) (Ref #20)
20
Part #90651-KPS-A11
Clamp, tube (d10.0) (Ref #20)
20
Part #90651-KPS-A11
