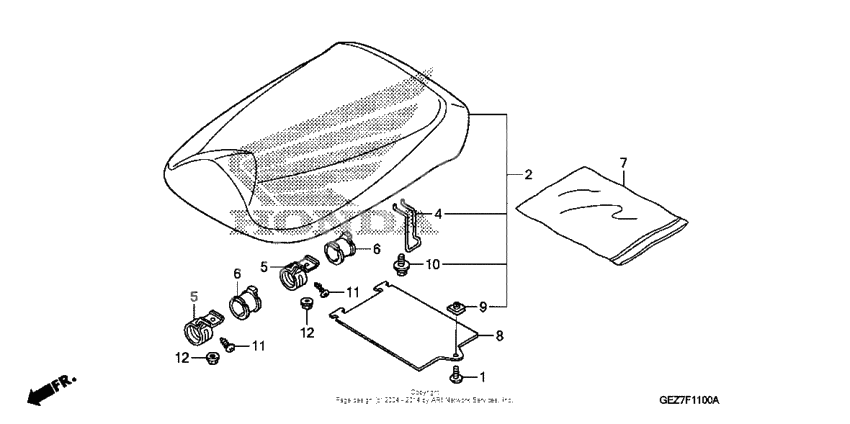

Seat
Seat
Screw, fr. cover (Ref #1)
1
Part #64321-GN5-830
Seat, single (type1) (Ref #2)
2
Part #77100-GEZ-J00ZA
Крюк (Ref #4)
4
Part #77125-GEZ-010
Hinge, seat (Ref #5)
5
Part #77201-GEZ-000
Hinge, seat (Ref #5)
5
Part #77201-GEZ-000
Hinge, seat (Ref #5)
5
Part #77201-GEZ-000
Hinge, seat (Ref #5)
5
Part #77201-GEZ-000
Bush, seat hinge (Ref #6)
6
Part #77205-GEZ-010
Bush, seat hinge (Ref #6)
6
Part #77205-GEZ-010
Bush, seat hinge (Ref #6)
6
Part #77205-GEZ-010
Bush, seat hinge (Ref #6)
6
Part #77205-GEZ-010
Bag, service book (Ref #7)
7
Part #77251-GR1-000
Cvr, owner`s manual (Ref #8)
8
Part #80210-GEZ-000
Nut, spring, 6mm (Ref #9)
9
Part #90320-747-000
Bolt-washer (Ref #10)
10
Part #93404-060-120-7
Болт (Ref #11)
11
Part #93903-34210
Болт (Ref #11)
11
Part #93903-34210
Болт (Ref #11)
11
Part #93903-34210
Болт (Ref #11)
11
Part #93903-34210
Гайка (Ref #12)
12
Part #94050-06000
Гайка (Ref #12)
12
Part #94050-06000
Гайка (Ref #12)
12
Part #94050-06000
Гайка (Ref #12)
12
Part #94050-06000
