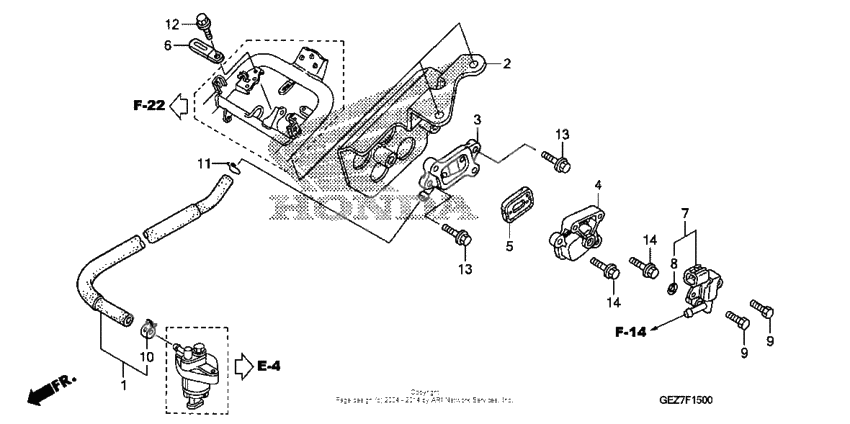

Ventilation valve
Ventilation valve
Tube b, pcv (Ref #1)
1
Part #14529-GEZ-610
Stay, pcv (Ref #2)
2
Part #17350-GEZ-610
Case, reed valve (Ref #3)
3
Part #17431-GEZ-610
Cover, reed valve (Ref #4)
4
Part #17432-GEZ-610
Клапан (Ref #5)
5
Part #18601-GEE-711
Clip, pulser cord (Ref #6)
6
Part #32925-958-000
Клапан (Ref #7)
7
Part #36162-GEZ-611
Прокладка (Ref #8)
8
Part #36221-PNC-005
BOLT (Ref #9)
9
Part #93301-050-120-A
BOLT (Ref #9)
9
Part #93301-050-120-A
BOLT (Ref #9)
9
Part #93301-050-120-A
BOLT (Ref #9)
9
Part #93301-050-120-A
CLAMP (Ref #10)
10
Part #95002-410-000-4
CLIP (Ref #11)
11
Part #95002-70000
BOLT (Ref #12)
12
Part #95701-060-120-0
Bolt, flange, 6x18 (Ref #13)
13
Part #95701-0601800
Bolt, flange, 6x18 (Ref #13)
13
Part #95701-0601800
Bolt, flange, 6x18 (Ref #13)
13
Part #95701-0601800
Bolt, flange, 6x18 (Ref #13)
13
Part #95701-0601800
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
