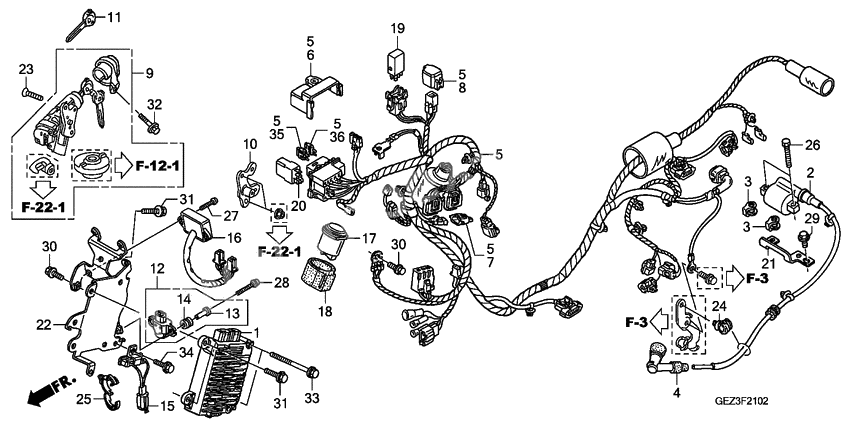

Harness wire NPS508/9
Harness wire NPS508/9
Блок управления (Ref #1)
1
Part #30400-GGA-003
Катушка аккамулятора (Ref #2)
2
Part #30510-GGA-003
Кольцо/шайба (Ref #3)
3
Part #30520-GFM-900
Кольцо/шайба (Ref #3)
3
Part #30520-GFM-900
Кольцо/шайба (Ref #3)
3
Part #30520-GFM-900
Кольцо/шайба (Ref #3)
3
Part #30520-GFM-900
Cap assy. (Ref #4)
4
Part #30700-GET-K41
Cover, battery box (Ref #6)
6
Part #32111-GET-003
Connector, joint (Ref #7)
7
Part #32150-KCR-J11
Cap, dummy (4p) (Ref #8)
8
Part #32606-GEV-761
Key set (Ref #9)
9
Part #35010-GGA-000
Guide (Ref #10)
10
Part #35105-GET-000
Ключ (Ref #11)
11
Part #35121-GEZ-692
Датчик (Ref #12)
12
Part #35160-KPH-701
COLLAR (Ref #13)
13
Part #35162-MN5-003
GROMMET (Ref #14)
14
Part #35163-MN5-003
Resistor comp (Ref #15)
15
Part #35400-GCK-030
Блок привода (Ref #16)
16
Part #37565-GEZ-008
Relay comp (Ref #17)
17
Part #38301-GCH-005
Suspension (Ref #18)
18
Part #38306-292-000
Relay (micro iso 4p) (Ref #19)
19
Part #38501-MCS-G01
Relay, swing (Ref #20)
20
Part #38520-GEE-711
BRACKET (Ref #21)
21
Part #50148-GGA-000
Stay comp (Ref #22)
22
Part #64303-GGA-000
Screw, flat (6x22) (Ref #23)
23
Part #90164-GEE-003
CLIP (Ref #24)
24
Part #90683-SA0-003
Clip, harness (Ref #25)
25
Part #90684-ZA0-601
Bolt, hex., 6x20 (Ref #26)
26
Part #92101-06020-4J
Болт (Ref #27)
27
Part #93500-040-160-A
Screw-washer (4x20) (Ref #28)
28
Part #93891-0402008
BOLT (Ref #29)
29
Part #95701-060-100-8
BOLT (Ref #30)
30
Part #95701-060-120-8
BOLT (Ref #30)
30
Part #95701-060-120-8
BOLT (Ref #30)
30
Part #95701-060-120-8
BOLT (Ref #30)
30
Part #95701-060-120-8
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #32)
32
Part #95701-060-160-8
Bolt, flange, 6x40 (Ref #33)
33
Part #95701-0604000
BOLT (Ref #34)
34
Part #96001-060-120-0
Fuse (Ref #35)
35
Part #98200-41000
Fuse (Ref #36)
36
Part #98200-42000
